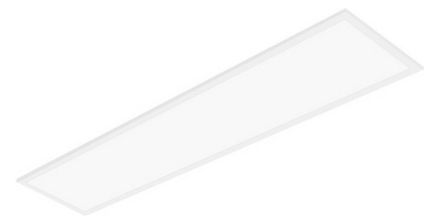

LEDVANCE Osram 4099854140228 BIOLUX HCL PL 1200 S 40W TW DALI LED recessed luminaire

LEDVANCE Osram 4099854140228 BIOLUX HCL PL 1200 S 40W TW DALI LED recessed luminaire

In stock

SKU: 1063243

Price on request

€248.50

€0

Overview

Insert lights, Tunable White, 115 lm/W, tool-free installation, DALI-2 IoT technology. Product features: IoT-capable light with DALI-2 technology. Color temperature adjustable via Tunable White: 2,700-6,500 K. Very high color rendering index Ra: > 90. High-quality frame made of extruded aluminum. Version available with pre-assembled Wago connector (type: WAGO 771-9985/206-301) for PANEL 625 CSW. Suitable for use on central battery systems in accordance with EN60598-2-22. Product advantages: Suitable light for VIVARES DALI, VIVARES DALI HCL and other DALI-2 lighting controls. Enables individual Tunable White lighting solution in combination with compatible DALI-2 control devices. Supports LEDVANCE Human Centric Lighting in combination with the DALI PRO 2 IOT LDVV control unit (4052899627079). Compatible with VIVARES CLOUD SERVICE for power consumption monitoring. Through-wiring possible with included cable clamp. Energy savings thanks to high system luminous efficacy: up to 115 lm/W. External DALI-2 driver for increased flexibility and easy installation. Low-flicker light thanks to special electronic ballast. Good glare control (UGR

Property	Value
Rated luminous flux according to IEC 62722-2-1:	4100 lm
Color temperature:	2700 - 6500 K
Color consistency (McAdam ellipse):	SDCM3
Protection class (IP):	IP20
Impact resistance:	IK02
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-20 - 40 °C
Length:	1195.00 mm
Width:	295.00 mm
Height/Depth:	50.0 mm
Voltage type:	AC/DC
Rated voltage:	220 - 240 V
Max. System power:	40.00 W
Luminaire luminous efficacy:	102 lm/W
With control gear:	yes
Control gear:	EVG
DALI dimming:	yes
DALI-2 dimming:	yes
Connection type:	Plug terminal
Number of poles:	4
Type of wiring:	Terminal
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distributor:	diffuser lens/optics/panel
Housing colour:	white
Housing material:	aluminum
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendant suspension:	yes
Photobiological safety in accordance with EN 62471:	RG0
Weight:	3.3
Weight unit:	KG
Socket:	other
Grid design:	matt
Installation width:	290 mm
Installation length:	1190 mm
Suitable for emergency lighting:	yes
Suitable for recessed mounting:	yes
Suitable for computer workstations in accordance with EN 12464-1:	yes
Nominal current:	190,000 mA
Rated service life L70/B50 at 25 °C:	70,000 h
Max. number of luminaires circuit breaker C16:	36
Max. Number of lights circuit breaker B16:	23
Color temperature adjustable:	continuously
Replaceable operating device:	yes
Installation height/depth:	50.0 mm
Surface protection housing:	powder-coated
Brief description:	BIOLUX HCL PANEL DALI GEN 2 1200 S 40W TW DALI

Characteristics

HABBIOLUX HCL PL 1200 S 40W TW DALI

Manufacturer

HAN4099854140228

GTIN4099854140228

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-14100lm

Rated ambient temperature according to IEC62722-2-1-20 - 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width295.00 mm

Dimming DALIYes

Dimming DALI-2Yes

Installation width290 mm

Installation height/depth50.0 mm

Installation length1190 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature

Color temperature adjustableContinuously variable

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Weight3,3

Weight unit kg

Height/Depth50.0 mm

Short descriptionBIOLUX HCL PANEL DALI GEN 2 1200 S 40W TW DALI

Luminaire luminous efficacy102lm/W

LampsLED not replaceable

Light emissionDirect

Light distributorDiffuser lens/optics/panel

Length1195.00 mm

Max. number of luminaires Circuit breaker B1623

Max. number of luminaires Circuit breaker C1636

Max. system performance40.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current190,000mA

Surface protection housingPowder coated

Photobiological safety according to EN 62471RG0

Number of poles4

Impact resistanceIK02

IP protection)IP20

Protection classII

Voltage type

Housing materialAluminum
