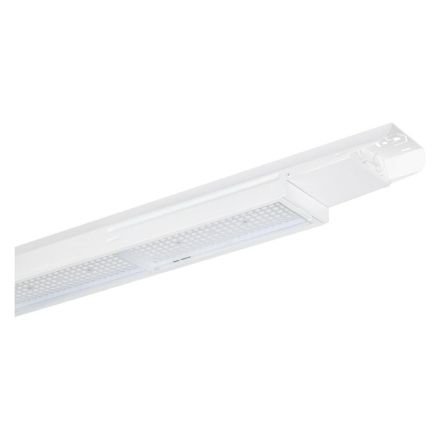

LEDVANCE Osram 4099854163715 LB FLEX 1500 P 140W 840 OV LED high bay luminaire

LEDVANCE Osram 4099854163715 LB FLEX 1500 P 140W 840 OV LED high bay luminaire

In stock

SKU: 1063831

Price on request

€214.57

€0

Overview

Low-bay lights with an attractive linear design, up to 160 lm/W. Product features: Different luminous fluxes and opening angles for mounting heights from ~ 4 m to ~ 14 m in 4000 K. Through-wiring cable already installed. Long service life (L80/B10): up to 100,000 hours. High color consistency: 3 SDCM. Product advantages: Economical thanks to high luminous efficacy of up to 160 lm/W. Simple and quick installation thanks to a connection box with 5- and 7-pin, tool-free connection terminal. Modern and robust design. 5-year guarantee. Areas of application: Replacement for lights with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industrial and storage areas. Discount stores, supermarkets. Sports halls. Indoor sports facilities. Technical equipment: Suspension set, ball-proof cover and angle mounting set available as separate accessories.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	22000 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Protection class (IP):	IP23
Impact resistance:	IK08
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-25 - 50 °C
Length:	1527.00 mm
Width:	115.00 mm
Height/Depth:	65.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	140 W
Luminaire luminous efficacy:	155 lm/W
Power factor:	0.90
With control gear:	yes
Number of poles:	5
Type of wiring:	suitable for through-wiring
With light source:	yes
Light source:	LED not replaceable
Light distribution:	symmetrical
Light distributor:	diffuser lens/optics/panel
Housing color:	white
Weight:	4.45
Weight unit:	KG
Reflector:	without
Nominal current:	650 mA
Light color:	white
Rated service life L70/B50 at 25 °C:	100000 h
Without Dimming function:	yes
Max. number of lights circuit breaker C16:	15
Max. number of lights circuit breaker B16:	9
Short description:	LOW BAY FLEX 1500 P 140W 840 OV
