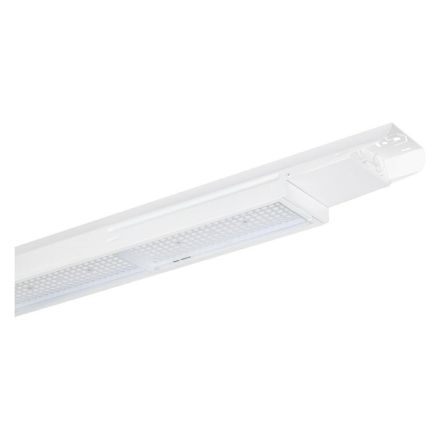

LEDVANCE Osram 4099854163852 LB FLEX 1500 DALI P 73W 840 OV LED high bay luminaire

LEDVANCE Osram 4099854163852 LB FLEX 1500 DALI P 73W 840 OV LED high bay luminaire

In stock

SKU: 1063929

Price on request

€225.10

€0

Overview

Low-bay luminaires with an attractive linear design, up to 160 lm/W with DALI-2 technology. Product features: DALI-2 certified. Suitable for emergency lighting systems on a central battery in accordance with EN 60598-2-22. Different luminous fluxes and opening angles for mounting heights from ~ 4 m to ~ 14 m in 4000 K. Through-wiring cable already installed. Long service life (L80/B10): up to 100,000 h. High color consistency: 3 SDCM. Product advantages: High compatibility thanks to DALI-2 validation. Economical thanks to high luminaire light output of up to 160 lm/W. Simple and quick installation thanks to a connection box with 5- and 7-pin, tool-free connection terminal. Modern and robust design. 5-year guarantee. Areas of application: Replacement for luminaires with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industrial and storage areas. Discounters, supermarkets. Sports halls. Indoor sports facilities. Technical equipment: Suspension set, ball-proof cover and angle mounting set available as separate accessories.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	11680 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Protection class (IP):	IP23
Impact resistance:	IK08
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-25 - 50 °C
Length:	1527.00 mm
Width:	115.00 mm
Height/Depth:	65.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	73 W
Luminaire luminous efficacy:	160 lm/W
Power factor:	0.90
With control gear:	yes
DALI dimming:	yes
Number of poles:	7
Type of wiring:	suitable for through-wiring
With light source:	yes
Light source:	LED not replaceable
Light distribution:	symmetrical
Light distributor:	diffuser lens/optics/panel
Housing colour:	white
Weight:	4.15
Weight unit:	KG
Reflector:	without
Nominal current:	320 mA
Light colour:	white
Rated service life L70/B50 at 25 °C:	100,000 h
Max. Number of lights circuit breaker C16:	36
Max. number of lights circuit breaker B16:	27
Short description:	LOW BAY FLEX 1500 DALI DALI P 73W 840 OV
