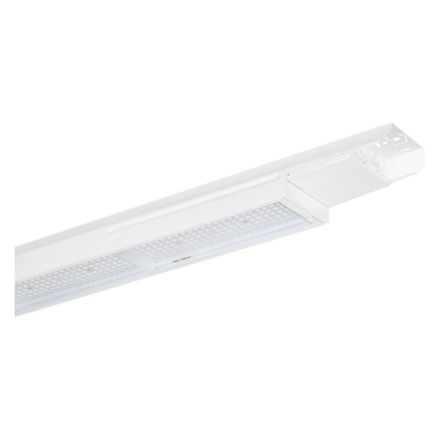

LEDVANCE Osram 4099854164132 LB FLEX 1200 DALI P 42W 840 N LED high bay luminaire

LEDVANCE Osram 4099854164132 LB FLEX 1200 DALI P 42W 840 N LED high bay luminaire

In stock

SKU: 1063873

Price on request

€178.17

€0

Overview

Low-bay luminaires with an attractive linear design, up to 155 lm/W with DALI-2 technology. Product features: DALI-2 certified. Suitable for emergency lighting systems on a central battery in accordance with EN 60598-2-22. Different luminous fluxes and opening angles for mounting heights from ~ 4 m to ~ 10 m in 4000 K. Through-wiring cable already installed. Long service life (L80/B10): up to 100,000 h. High color consistency: 3 SDCM. Product advantages: High compatibility thanks to DALI-2 validation. Economical thanks to high luminaire light output of up to 155 lm/W. Simple and quick installation thanks to a connection box with 5- and 7-pin, tool-free connection terminal. Modern and robust design. 5-year guarantee. Areas of application: Replacement for luminaires with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industrial and storage areas. Discounters, supermarkets. Sports halls. Indoor sports facilities. Technical equipment: Suspension set, ball-proof cover and angle mounting set available as separate accessories.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	6510 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Protection class (IP):	IP23
Impact resistance:	IK08
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-25 - 50 °C
Length:	1236.00 mm
Width:	115.00 mm
Height/Depth:	65.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	42 W
Luminaire luminous efficacy:	155 lm/W
Power factor:	0.90
With control gear:	yes
DALI dimming:	yes
Number of poles:	7
Type of wiring:	suitable for through-wiring
With light source:	yes
Light source:	LED not replaceable
Light distribution:	symmetrical
Beam angle:	wide beam 41-80°
Light distributor:	Diffuser lens/optics/panel
Housing color:	white
Weight:	3.3
Weight unit:	KG
Reflector:	without
Nominal current:	190 mA
Light color:	white
Rated service life L70/B50 at 25 °C:	100,000 h
Max. Number of lights circuit breaker C16:	16
Max. number of lights circuit breaker B16:	16
Short description:	LOW BAY FLEX 1200 DALI DALI P 42W 840 N
