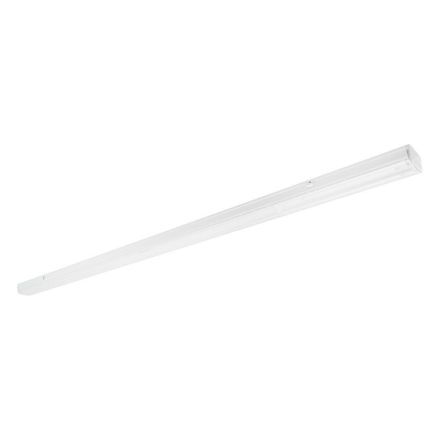

LEDVANCE Osram 4099854190490 TRUSYS FLEX P 35W 865 VW CL WT LED device carrier

LEDVANCE Osram 4099854190490 TRUSYS FLEX P 35W 865 VW CL WT LED device carrier

In stock

SKU: 1063994

Price on request

€149.97

€0

Overview

Luminaire inserts with very wide light distribution, up to 175 lm/W. Product features: Very wide beam angle: 120°. Clickable solution with push buttons. Light output: up to 175 lm/W. Fixed luminaire taps. Luminaire versions available with on/off or IoT-capable DALI-2 driver. Sheet steel housing. Lens material: PMMA. Protection class: IP40. Product advantages: Very wide light distribution for area illumination. Easy installation, tool-free connection. Energy-saving and cost-effective. Flexible application thanks to a wide range of different lumen packages and luminaire opening angles. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Industrial halls, high-bay warehouses, hardware stores. Discounters, supermarkets. Technical equipment: Mounting rail with permanently integrated 5- and 8-pin cable harness.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	6000 lm
Color temperature:	6500 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM3
Protection rating (IP):	IP40
Protection class:	I
Length:	1500.00 mm
Width:	77.70 mm
Height/Depth:	39.40 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	35.00 W
Luminaire luminous efficacy:	175 lm/W
Power factor:	0.95
With control gear:	yes
Control gear:	electronic transformer
Connection type:	other
Number of poles:	2
Type of wiring:	suitable for through-wiring
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distribution:	symmetrical
Beam angle:	medium beam 21-40°
Light distributor:	Focus lens
Housing colour:	white
Weight:	1.68
Weight unit:	KG
Reflector:	without
Nominal current:	160,000 mA
Rated service life L70/B50 at 25 °C:	100000 h
Rated service life L80/B10 at 25 °C:	76000 h
Without dimming function:	yes
Replaceable operating device:	yes
Short description:	TruSys® FLEX VERY WIDE 35W 865 VW CL WT

Characteristics

HABTRUSYS FLEX P 35W 865 VW CL WT

Manufacturer

HAN4099854190490

GTIN4099854190490

Connection typeOther

Type of wiringSuitable for through wiring

Beam angleMedium beam 21-40°

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C100000 hours

Rated lifetime L80/B10 at 25 °C76000 hours

Rated luminous flux according to IEC 62722-2-16000lm

Operating deviceElectronic transformer

Width77.70 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature

Color rendering index CRI80-89

Housing colorWhite

Weight1,68

Weight unit kg

Height/Depth39.40 mm

Short descriptionTruSys® FLEX VERY WIDE 35W 865 VW CL WT

Power factor0.95

Luminaire luminous efficacy175lm/W

LampsLED not replaceable

Light emissionDirect

Light distributorFocus lens

Light distributionSymmetrical

Length1500.00 mm

Max. system performance35.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current160,000mA

Without dimming functionYes

Number of poles2

ReflectorWithout

IP protection)IP40

Protection classI

Voltage type
