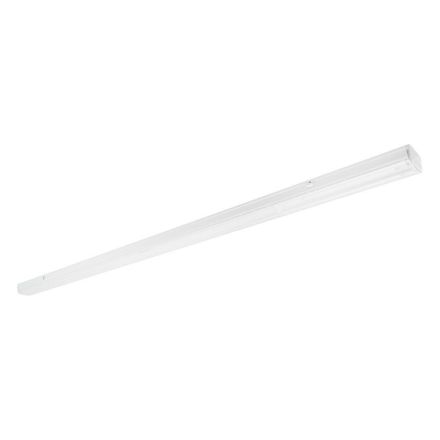

LEDVANCE Osram 4099854191817 TRUSYS FLEX P 50W 865 N CL WT EM LED device carrier

In stock
SKU: 1063828
€260.57
Into a basketIn the basketGo

Overview

Luminaire inserts with narrow light distribution for standard and emergency lighting, up to 175 lm/W. Product features: Certified according to European standards (EN 60598-1:2015 EN 60598-2-22:2014). Luminaire suitable for general lighting and safety lighting. Self-contained luminaires. Safety lighting function: battery discharge time 3 h. Safety lighting function test: automatic (AT). Battery technology: LiFePO4. Narrow beam angle: 60°. Clickable solution with push buttons. Fixed luminaire taps. Sheet steel housing. Product advantages: Seamless integration of luminaires with safety lighting function into the general lighting. Simple wiring thanks to the supplied, pre-wired driver and battery for the safety lighting function. Easy testing of the safety lighting function thanks to the integrated automatic test function. Convenient visualization of the results of the automatic test with the included control LED. Operation of the emergency lighting function with a long-lasting LiFePO4 battery with a 3h operating discharge time. High light output in normal operation. 3-year guarantee. Directed light distribution for great heights. Easy installation, tool-free connection. Energy-saving and cost-effective. Flexible application thanks to a wide range of different lumen packages and luminaire opening angles. Areas of application: Emergency lighting for escape routes. Anti-panic lighting. Buildings that require 3h emergency lighting. Direct replacement for luminaires with fluorescent lamps. Industrial halls, high-bay warehouses, hardware stores. Technical equipment: Mounting rail with permanently integrated 8-pin cable harness.

PropertyValue
Rated luminous flux according to IEC 62722-2-1:8600 lm
Color temperature:6500 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM3
Protection rating (IP):IP40
Protection class:I
Length:1500.00 mm
Width:77.70 mm
Height/Depth:39.40 mm
Voltage type:AC/DC
Nominal voltage:220 - 240 V
Max. System power:50.00 W
Luminaire luminous efficacy:175 lm/W
Power factor:0.95
With control gear:yes
Control gear:electronic transformer
Connection type:other
Number of poles:2
Type of wiring:suitable for through-wiring
With light source:yes
Light source:LED not replaceable
Light emission:direct
Light distribution:symmetrical
Beam angle:wide beam 41-80°
Light distributor:Focus lens
Housing color:white
Weight:2.36
Weight unit:KG
Reflector:without
Suitable for emergency lighting:yes
Emergency power supply integrated:yes
Nominal current:230,000 mA
Rated service life L70/B50 at 25 °C:100,000 h
Rated service life L80/B10 at 25 °C:76,000 h
Without dimming function:yes
Short description:TruSys® FLEX EMERGENCY NARROW 50W 865 N CL WT EM

Characteristics

HABTRUSYS FLEX P 50W 865 N CL WT EM
ManufacturerLEDVANCE Osram
HAN4099854191817
GTIN4099854191817
Connection typeOther
Type of wiringSuitable for through wiring
Beam angleWide beam 41-80°
Rated lifetime L70/B50 at 25 °C100000 hours
Rated lifetime L80/B10 at 25 °C76000 hours
Rated luminous flux according to IEC 62722-2-18600lm
Operating deviceElectronic transformer
Width77.70 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature6500K
Color rendering index CRI80-89
Suitable for emergency lightingYes
Housing colorWhite
Weight2,36
Weight unit kg
Height/Depth39.40 mm
Short descriptionTruSys® FLEX EMERGENCY NARROW 50W 865 N CL WT EM
Power factor0.95
Luminaire luminous efficacy175lm/W
LampsLED not replaceable
Light emissionDirect
Light distributorFocus lens
Light distributionSymmetrical
Length1500.00 mm
Max. system performance50.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
Rated current230,000mA
Emergency power supply integratedYes
Without dimming functionYes
Number of poles2
ReflectorWithout
IP protection)IP40
Protection classI
Voltage typeAC/DC
LEDVANCE Osram 4099854191817 TRUSYS FLEX P 50W 865 N CL WT EM LED device carrier
LEDVANCE Osram 4099854191817 TRUSYS FLEX P 50W 865 N CL WT EM LED device carrier
€260.57
Into a basketIn the basketGo
