HABPL COMP 625 V 35W 830 840 U19 PS
HAN4099854206573
GTIN4099854206573
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridHigh gloss
Replaceable operating deviceYes
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-13300lm
Rated ambient temperature according to IEC62722-2-1-10 - 50 °C
Suitable for computer workstations according to EN 12464-1Yes
Glare limitation (UGR)19
Width620.00 mm
Installation width595.00 mm
Installation height/depth50.0 mm
Installation length600 mm
Energy efficiency class of the light source according to EU Directive 2019/2015E
Color consistency (McAdam ellipse)SDCM5
Color temperature adjustableStages
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for emergency lightingYes
Suitable for pendulum suspensionYes
Housing colorWhite
Weight1,9
Weight unit kg
Height/Depth32.00 mm
IFTTT support availableYes

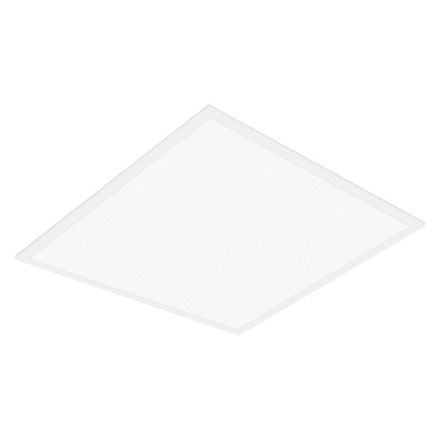

Short descriptionPANEL COMPACT 625 UGR-19 2CCT 35W 830 840 U19 HP
Power factor0.90
Luminaire luminous efficacy110lm/W
Light emissionDirect
Light colorWhite
Luminous flux adjustableStages
Light distributorDiffuser lens/optics/panel
Length620.00 mm
Max. number of luminaires Circuit breaker B1661
Max. number of luminaires Circuit breaker C1678
Max. system performance35W
With operating deviceYes
With light sourceYes
Rated current170,000mA
Without dimming functionYes
Photobiological safety according to EN 62471RG0
Number of poles2
Impact resistanceIK02
IP protection)IP40
Protection classII
Housing materialSteel
