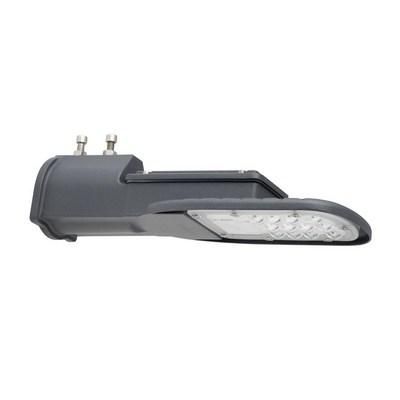

LEDVANCE Osram 4058075425095 ECO AREA S SPD 30W 840 3600LM GR LED mast light

LEDVANCE Osram 4058075425095 ECO AREA S SPD 30W 840 3600LM GR LED mast light

In stock

SKU: 732568

Price on request

€133.66

€0

Overview

For applications with a luminous flux requirement of up to 7200 lm. Product features: Asymmetrical light distribution for a wide range of applications. Housing made of robust die-cast aluminum. Pole-mounted installation with a 48.60 mm spigot dimension. Surge protection: up to 10 kV (L/N-PE). Integrated ballast with a wide input voltage range, suitable for 100 - 277 VAC. Pre-installed, flexible cable (H05RN-F) with a length of 0.5 m, 3 x 1.0 mm² crimped. Product advantages: Functional and minimalist design. Low maintenance and operating costs thanks to the long LED service life. 5-year guarantee. Areas of application: Street lighting. Roads. Parking lots. Area lighting.

Property	Value
Length:	300 mm
Height/Depth:	83.0 mm
Max. System power:	30.00 W
Rated luminous flux according to IEC 62722-2-1:	3600 lm
Color temperature:	4000 K
Nominal voltage:	100 to 240 V
Housing color:	gray
Operating device:	EVG
With light source:	yes
Light source:	LED not replaceable
Protection class (IP):	IP66
Protection class:	I
Impact resistance:	IK08
Mounting type:	Approach
Color rendering index CRI:	80-89
Voltage type:	AC
With control gear:	yes
Adjustable optics:	no
Cover material:	transparent plastic
Housing material:	aluminum
Remote control:	without
Cable length:	0.3 m
Constant luminous flux control:	no
Light color:	white
With connection cable:	yes
With radio control:	no
With program-controlled light control:	no
Surface:	powder-coated
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Rated service life L70/B10 at 25 °C:	50000 h
Rated service life L70/B50 at 25 °C:	50000 h
Light distributor:	Focus lens
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-30 to +50 °C
Luminaire luminous efficacy:	120 lm/W
Power factor:	0.90
Wiring type:	Termination
Number of poles:	3

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Rated service life L70/B10 at 25 °C50000 h

HABECO AREA S SPD 30W 840 3600LM GR

Manufacturer

HAN4058075425095

GTIN4058075425095

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13600lm

Rated ambient temperature according to IEC62722-2-1-30 to +50 °C

Operating deviceElectronic ballast

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Remote controlWithout

Housing colorGray

Height/Depth83.0 mm

Cable length0.3m

Constant luminous flux controlNo

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light colorWhite

Light distributorFocus lens

Length300 mm

Max. system performance30.00W

With connection cableYes

With operating deviceYes

With radio controlNo

With light sourceYes

With program-controlled lighting controlNo

Mounting typeApproach

Nominal voltage

SurfacePowder coated

Without dimming functionYes

Number of poles3

Impact resistanceIK08

IP protection)IP66

Protection classI

Voltage type

Cover materialPlastic transparent

Housing materialAluminum
