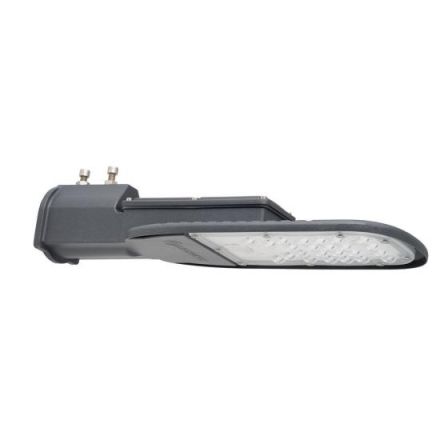

LEDVANCE Osram 4058075425255 ECO AREA L SPD 60W 840 7200LM GR LED mast light

LEDVANCE Osram 4058075425255 ECO AREA L SPD 60W 840 7200LM GR LED mast light

In stock

SKU: 732576

Price on request

€210.58

€0

Overview

For applications with a luminous flux requirement of up to 7200 lm. Product features: Asymmetrical light distribution for a wide range of applications. Housing made of robust die-cast aluminum. Pole-mounted installation with a 48.60 mm spigot dimension. Surge protection: up to 10 kV (L/N-PE). Integrated ballast with a wide input voltage range, suitable for 100 - 277 VAC. Pre-installed, flexible cable (H05RN-F) with a length of 0.5 m, 3 x 1.0 mm² crimped. Product advantages: Functional and minimalist design. Low maintenance and operating costs thanks to the long LED service life. 5-year guarantee. Areas of application: Street lighting. Roads. Parking lots. Area lighting.

Property	Value
Length:	409.00 mm
Width:	151.00 mm
Height/Depth:	83.00 mm
Max. System power:	60.00 W
Rated luminous flux according to IEC 62722-2-1:	7200 lm
Color temperature:	4000 K
Suitable for spigot size:	60 mm
Nominal voltage:	100 to 240 V
Housing color:	gray
Operating device:	EVG
With light source:	yes
Light source:	LED not replaceable
Protection class (IP):	IP66
Protection class:	I
Impact resistance:	IK08
Mounting type:	Attachment
Color rendering index CRI:	80-89
Voltage type:	AC
With operating device:	yes
Adjustable optics:	no
Housing material:	aluminum
Remote control:	without
Cable length:	0.5 m
Constant luminous flux control:	no
With connection cable:	yes
With radio control:	no
With program-controlled light control:	no
Surface:	powder-coated
LED nominal current at constant current:	270 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Rated service life L70/B50 at 25 °C:	50000 h
Light distributor:	Focus lens
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Luminaire luminous efficacy:	120 lm/W
Wiring type:	Termination
Number of poles:	3
Connection type:	other

Characteristics

HABECO AREA L SPD 60W 840 7200LM GR

Manufacturer

HAN4058075425255

GTIN4058075425255

Connection typeOther

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-17200lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Operating deviceElectronic ballast

Width151.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Remote controlWithout

Suitable for braid size60 mm

Housing colorGray

Height/Depth83.00 mm

Cable length0.5m

Constant luminous flux controlNo

LED nominal current at constant current270mA

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light distributorFocus lens

Length409.00 mm

Max. system performance60.00W

With connection cableYes

With operating deviceYes

With radio controlNo

With light sourceYes

With program-controlled lighting controlNo

Mounting typeEssay

Nominal voltage

SurfacePowder coated

Without dimming functionYes

Number of poles3

Impact resistanceIK08

IP protection)IP66

Protection classI

Voltage type

Housing materialAluminum
