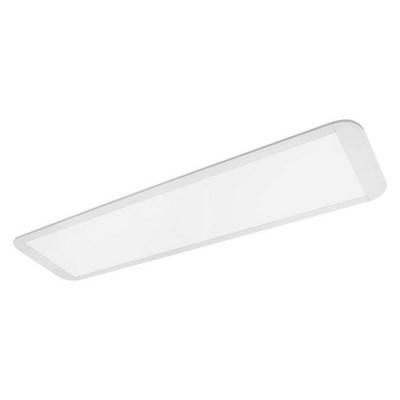

LEDVANCE Osram 4058075504028 PANEL D/I 1200 36W/3000K UGR19 DALI LED pendant light

In stock
SKU: 732578
€310.64
Into a basketIn the basketGo

Overview

Pendant luminaires with edge feed for direct and indirect lighting, strong glare control, 1200 mm and DALI-2 IoT technology. Product features: IoT-capable luminaire with DALI-2 technology. Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70%) and indirect (30%) light emission. Driver integrated in the remote driver box. UGR 19 according to EN12464-1. High luminous efficacy: up to 110 lm/W. Service life (L70/B50): 80,000 h (at 25 °C). Follows the uniform design language of LEDVANCE (SCALE Design). Very slim aluminum housing. Product advantages: Suitable luminaire for VIVARES and other DALI-2 light management systems. Pendant luminaires with edge lighting for direct (70%) and indirect lighting (30%). Attractive and functional design for office applications. Good glare control (UGR 19). Very homogeneous light. Low maintenance and low running costs. External driver for increased flexibility. Special light control design for low glare lighting. Simple and quick installation. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Efficient replacement for traditional T8 and T5 light strips. Offices. Meeting rooms. Conference rooms. Reception areas, entrance areas. Technical equipment: Suspension set included.

PropertyValue
Max. System power:36.00 W
Rated luminous flux according to IEC 62722-2-1:3800 lm
Color temperature:3000 K
Length:1200.00 mm
Width:300.00 mm
Socket:without
Height/Depth:16.00 mm
Protection class (IP):IP20
Protection class:I
Pendant length:2000 mm
Material of the housing:Aluminium
Suitable for computer workstations in accordance with EN 12464-1:yes
With light source:yes
With operating device:yes
Nominal voltage:220 to 240 V
Suspension included:yes
Material of the cover:Plastic opal
Light source:LED not replaceable
Housing colour:white
Design of the grid:other
Reflector:without
Suitable for light strip configuration:no
Direct/indirect components separately adjustable:no
Light distribution:symmetrical
Light emission:direct/indirect
Impact resistance:IK03
Luminaire with limited surface temperature 'D-mark':no
Colour rendering index CRI:80-89
Suitable for emergency lighting:no
Light color:white
Voltage type:AC
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:yes
Dimming DMX:no
Dimming programmable:no
Dimming DSI:no
Dimming RF:no
Dimming potentiometer (device integrated):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Light distributor:Diffuser lens/optics/panel
Glow wire test according to IEC 60695-2-11:650 °C - 30 s
Power factor:0.90
Rated service life L70/B50 at 25 °C:80000 h
Type of wiring:Termination
Number of poles:5
Connection type:Plug-in terminal

Characteristics

HABPANEL D/I 1200 36W/3000K UGR19 DALI
ManufacturerLEDVANCE Osram
HAN4058075504028
GTIN4058075504028
Suspension includedYes
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridOther
Rated lifetime L70/B50 at 25 °C80000 hours
Rated luminous flux according to IEC 62722-2-13800lm
Suitable for computer workstations according to EN 12464-1Yes
Width300.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Direct/indirect components can be controlled separatelyNo
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth16.00 mm
Power factor0.90
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Length1200.00 mm
Max. system performance36.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionNo
Pendulum length2000 mm
Number of poles5
ReflectorWithout
Impact resistanceIK03
IP protection)IP20
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
