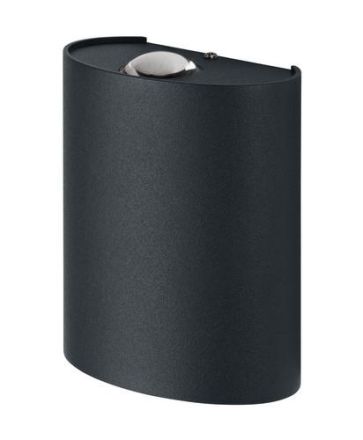

LEDVANCE Osram 4058075205529 ENDURA STYLE UPDOWN DECO I 6W DG LED wall light

LEDVANCE Osram 4058075205529 ENDURA STYLE UPDOWN DECO I 6W DG LED wall light

In stock

SKU: 842853

Price on request

€27

€0

Overview

Wall light with a narrow beam angle. Product features: Narrow, sharply cut beam angle. Housing made of die-cast aluminum. Single or double light output. Product advantages: Simple and quick installation. Energy efficient thanks to LED technology. Areas of application: Outdoor use (IP44). Illumination of facades. Entrance lighting. Terraces, balconies. Technical equipment: Complete assembly and connection accessories included

Property	Value
Max. System power:	6.00 W
Rated luminous flux according to IEC 62722-2-1:	280 lm
Length:	50.00 mm
Width:	100.00 mm
Height/depth:	130.00 mm
Protection class (IP):	IP44
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Screw terminal
With operating device:	yes
Without dimming function:	yes
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations according to EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	other
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Rated service life L70/B50 at 25 °C:	30000 h
Luminaire luminous efficacy:	47 lm/W
Power factor:	0.5
Wiring type:	Termination
Number of poles:	3

Characteristics

HABENDURA STYLE UPDOWN DECO I 6W DG

Manufacturer

HAN4058075205529

GTIN4058075205529

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridOther

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-1280lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width100.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorGray

Height/Depth130.00 mm

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy47lm/W

Light emissionDirect

Light colorWhite

Length50.00 mm

Max. system performance6.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles3

Impact resistanceIK03

IP protection)IP44

Protection classI

Voltage type

Housing materialAluminum
