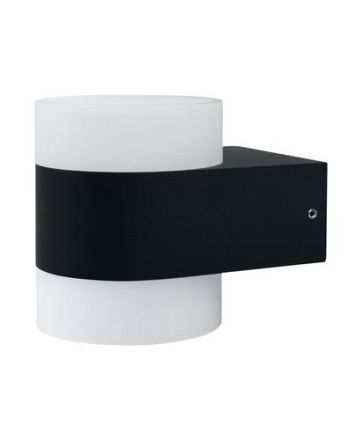

LEDVANCE Osram 4058075205567 ENDURA STYLE UPDOWN PUCK 13W DG LED wall light

LEDVANCE Osram 4058075205567 ENDURA STYLE UPDOWN PUCK 13W DG LED wall light

In stock

SKU: 842856

Price on request

€42.47

€0

Overview

Luminaire with direct light upwards and downwards. Product features: Bright and functional LED outdoor lights. Housing made of die-cast aluminum. Available in two housing colors. Product advantages: Simple and quick installation. Energy efficient thanks to LED technology. Areas of application: Outdoor use (IP44). Illumination of facades. Entrance lighting. Terraces, balconies. Technical equipment: Complete assembly and connection accessories included

Property	Value
Max. System power:	12.50 W
Rated luminous flux according to IEC 62722-2-1:	980 lm
Length:	131.00 mm
Width:	91.00 mm
Height/depth:	110.00 mm
Protection rating (IP):	IP44
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Screw terminal
With operating device:	yes
Without dimming function:	yes
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	30000 h
Luminaire luminous efficacy:	75 lm/W
Power factor:	0.5
Wiring type:	Termination
Number of poles:	3

Characteristics

HABENDURA STYLE UPDOWN PUCK 13W DG

Manufacturer

HAN4058075205567

GTIN4058075205567

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-1980lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width91.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorGray

Height/Depth110.00 mm

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy75lm/W

Light emissionDirect

Light colorWhite

Length131.00 mm

Max. system performance12.50W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles3

Impact resistanceIK03

IP protection)IP44

Protection classI

Voltage type

Housing materialAluminum
