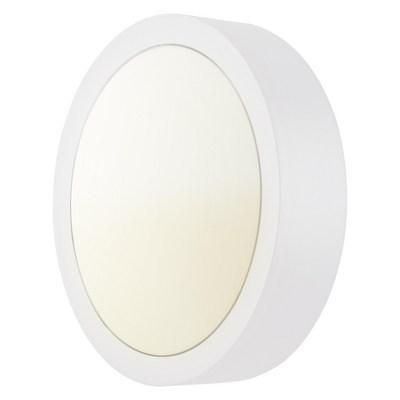

LEDVANCE Osram 4058075374942 SF BLKH 250 10W/4000K S WT IP65 LED wall / ceiling light

LEDVANCE Osram 4058075374942 SF BLKH 250 10W/4000K S WT IP65 LED wall / ceiling light

In stock

SKU: 705697

Price on request

€77.04

€0

Overview

Robust wall and ceiling light with IP65 protection and high frequency sensor. Product features: High frequency sensor for daylight and motion detection. UV-stabilized polycarbonate (PC) housing, PC diffuser. Shock resistance: IK10. Plug-in terminal for tool-free connection. Through-wiring possible. Protection class: IP65. Luminous flux: up to 800 lm. High luminous efficacy: up to 80 lm/W. Service life (L70/B50): up to 50,000 h (at 25 C). Ambient temperature range during operation: -20.+40 C. Product advantages: Multiple setting options for sensor range, daylight detection and hold time. Suitable for use in dusty and humid environments thanks to high protection class. Suitable for use in public areas thanks to high IK rating. Multiple mounting patterns for convenient installation. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). 5 year guarantee. Areas of application: Direct replacement for luminaires with compact fluorescent lamps. Corridors, stairwells, entrance areas. Passages, underpasses. Public spaces. Technical equipment: Additional cover rings available in various designs. Including mounting screws and dowels.

Property	Value
Energy efficiency class of the built-in lamp:	F
Height/Depth:	70.0 mm
Max. System power:	9.26 W
Rated luminous flux according to IEC 62722-2-1:	800 lm
With control gear:	yes
Protection rating (IP):	IP65
Protection class:	II
Nominal voltage:	240 V
Voltage type:	AC
Beam angle:	extremely wide beam >,80°
Color temperature:	4000 K
With light source:	yes
Light source:	LED not replaceable
Housing material:	Plastic
Cover material:	Plastic opal
Light distributor:	Diffuser lens/optics/panel
Impact resistance:	IK10
Housing color:	white
Without dimming function:	yes
Rated ambient temperature according to IEC62722-2-1:	+40 °C
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Light emission:	direct
With light sensor:	yes
With motion detector:	yes
Operating device:	EVG
Suitable for recessed mounting:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Light colour:	white
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
DMX dimming:	no
DSI dimming:	no
Luminaire with limited surface temperature 'D-mark':	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
LED nominal current at constant current:	350 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Luminaire luminous efficacy:	80 lm/W
Power factor:	0.5
Wiring type:	suitable for through wiring
Number of poles:	2

Characteristics

Energy efficiency class of the permanently installed light sourceF

HABSF BLKH 250 10W/4000K S WT IP65

Manufacturer

HAN4058075374942

GTIN4058075374942

Covering the luminaire with thermal insulation material possibleNo

Type of wiringSuitable for through wiring

Execution of the gridFrosted

Beam angleExtremely wide beam >80°

Rated luminous flux according to IEC 62722-2-1800lm

Rated ambient temperature according to IEC62722-2-1+40°C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth70.0 mm

LED nominal current at constant current350mA

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Max. system performance9.26W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles2

Impact resistanceIK10

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialPlastic
