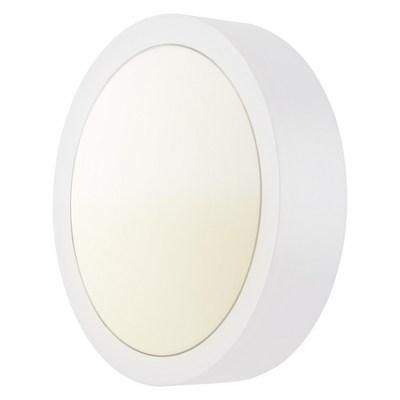

LEDVANCE Osram 4058075375406 SF BLKH 300 15W/3000K S WT IP65 EM LED wall / ceiling light

In stock
SKU: 705720
€235.73
Into a basketIn the basketGo

Overview

Robust wall and ceiling light with IP65 protection, high frequency sensor and integrated emergency lighting function. Product features: High frequency sensor for daylight and motion detection. Validated according to European standards (EN 60598-1:2015, EN 60598-2-22:2014). Light suitable for general lighting and emergency lighting. Self-contained lights. Emergency lighting function: Battery discharge time 3 h. Emergency lighting function test: automatic (AT). Battery technology: LiFePO4. Ambient temperature range during operation: 5+40 C. UV-stabilized polycarbonate (PC) housing, PC diffuser. Shock resistance: IK10. Plug-in terminal for tool-free connection. Through-wiring possible. Product advantages: Multiple setting options for sensor range, daylight detection and hold time. Seamless integration of lights with emergency lighting function into the general lighting. Easy wiring thanks to the included pre-wired driver and battery for the emergency lighting function. Easy testing of the emergency lighting function thanks to the integrated automatic test function. Convenient visualization of the results of the automatic test with the included control LED. Operation of the emergency lighting function with a long-lasting LiFePO4 battery with 3h operating discharge time. High light output in normal operation. 3 year guarantee. Suitable for use in dusty and damp environments thanks to the high protection class. Suitable for use in public areas thanks to the high IK rating. Multiple mounting patterns for convenient installation. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Areas of application: Emergency lighting for escape routes. Anti-panic lighting. Buildings that require 3 h of emergency lighting. Direct replacement for luminaires with fluorescent lamps. Corridors, stairwells, entrance areas. Passages, underpasses. Public spaces. Technical equipment: Additional cover rings available in various designs. Includes mounting screws and dowels.

PropertyValue
Height/Depth:70.0 mm
Max. System power:16.50 W
Rated luminous flux according to IEC 62722-2-1:1400 lm
With control gear:yes
Protection class (IP):IP65
Protection class:II
Nominal voltage:240 V
Voltage type:AC
Beam angle:extremely wide beam >,80°
Color temperature:3000 K
With light source:yes
Light source:LED not replaceable
Housing material:Plastic
Cover material:Plastic opal
Light distributor:Diffuser lens/optics/panel
Impact resistance:IK10
Housing color:white
Without dimming function:yes
Rated ambient temperature according to IEC62722-2-1:+40 °C
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Suitable for wall mounting:yes
Light emission:direct
With light sensor:yes
With motion detector:yes
Operating device:EVG
Suitable for recessed mounting:no
Suitable for strip light configuration:no
Suitable for pendant suspension:no
Suitable for surface mounting:yes
Suitable for emergency lighting:yes
Light colour:white
Design of the grid:matt
Covering of the luminaire with thermal insulation material possible:no
Suitable for computer workstations in accordance with EN 12464-1:no
DMX dimming:no
DSI dimming:no
Luminaire with limited surface temperature 'D-mark':no
With air slots:no
Dimming LineSwitch:no
Dimming potentiometer (integrated in the device):no
LED nominal current at constant current:350 mA
Dimming 0-10 V:no
Dimming GPRS:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:no
Dimming mains voltage modulation:no
Dimming trailing edge phase control:no
Dimming leading edge phase control:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Dimming depending on operating device:no
Luminaire luminous efficacy:93 lm/W
Power factor:0.5
Wiring type:suitable for through wiring
Number of poles:2

Characteristics

HABSF BLKH 300 15W/3000K S WT IP65 EM
ManufacturerLEDVANCE Osram
HAN4058075375406
GTIN4058075375406
Covering the luminaire with thermal insulation material possibleNo
Type of wiringSuitable for through wiring
Execution of the gridFrosted
Beam angleExtremely wide beam >80°
Rated luminous flux according to IEC 62722-2-11400lm
Rated ambient temperature according to IEC62722-2-1+40°C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingYes
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Height/Depth70.0 mm
LED nominal current at constant current350mA
Power factor0.5
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy93lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorDiffuser lens/optics/panel
Max. system performance16.50W
With operating deviceYes
With motion detectorYes
With light sourceYes
With light sensorYes
With air slotsNo
Nominal voltage240V
Without dimming functionYes
Number of poles2
Impact resistanceIK10
Protection classII
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
