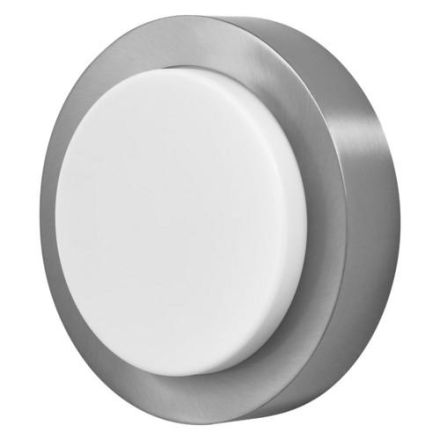

LEDVANCE Osram 4058075564121 ENDURA STYLE DISC WALL ST LED wall light

LEDVANCE Osram 4058075564121 ENDURA STYLE DISC WALL ST LED wall light

In stock

SKU: 842841

Price on request

€25.99

€0

Overview

Wall lights in stainless steel look with optional sensor. Product features: Bright and functional LED outdoor lights. Available with and without motion sensor. Stainless steel housing. Protection class: IP44. Product advantages: Simple and quick installation. Energy efficient thanks to LED technology. Areas of application: Illumination of facades. Entrance lighting. Terraces, balconies. Technical equipment: Complete assembly and connection accessories included

Property	Value
Max. System power:	8.00 W
Rated luminous flux according to IEC 62722-2-1:	370 lm
Length:	200.00 mm
Height/depth:	60.00 mm
Protection rating (IP):	IP44
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	stainless steel
Housing material:	Stainless steel
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Outer diameter:	200.00 mm
Voltage type:	AC
With motion detector:	no
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Without dimming function:	yes
With light sensor:	no
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	other
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	25000 h
Luminaire luminous efficacy:	46 lm/W
Power factor:	0.5
Wiring type:	Termination
Number of poles:	2

Characteristics

HABENDURA STYLE DISC WALL ST

Manufacturer

HAN4058075564121

GTIN4058075564121

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridOther

Outer diameter200.00 mm

Rated lifetime L70/B50 at 25 °C25000 hours

Rated luminous flux according to IEC 62722-2-1370lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorStainless steel

Height/Depth60.00 mm

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy46lm/W

Light colorWhite

Length200.00 mm

Max. system performance8.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP44

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialStainless steel
