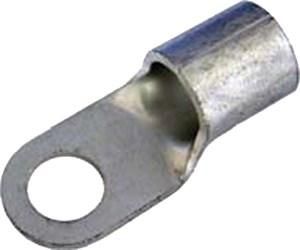

Intercable 180425 ICQ958 95qmm M8 tinned crimp cable lug

Intercable 180425 ICQ958 95qmm M8 tinned crimp cable lug

In stock

SKU: 665506

Price on request

€3.51

€0

Into a basketIn the basketGo

Overview

180425 ICQ958 95qmm M8 tinned crimp cable lug Manufacturer article number: 180425, Manufacturer article name: ICQ958 95qmm M8 tinned

Property	Value
Nominal cross section:	95 mm²
Flange shape:	Ring shape
Suitable for stranded conductors:	yes
According to DIN:	yes
Connection thread size (metric):	8
Insulation:	without
AWG range:	000
Suitable for enamelled wire:	no
Surface:	tinned
Suitable for Fine-stranded conductors:	yes
Material:	copper
Suitable for flat conductors:	no
Taped conductors:	no
Suitable for solid conductors:	no
Suitable for high temperatures (up to 650 °C):	no
For tensile connections:	no
Suitable for round conductors:	yes
Sleeve shape:	short
Maximum current (Imax):	197 A
Bolt Size (Imperial):	5/16 inch

Characteristics

Maximum current (Imax)197 A

Bolt size (imperial)5/16 inch

HABICQ958 95qmm M8 tinned

Minimal order50 pieces

Manufacturer

HAN180425

GTIN8014212187727

AWG range000

Connection thread size (metric)8

Tape goodsNo

Flange shapeRing shape

For tensile connectionsNo

Suitable for flat conductorsNo

Suitable for enamelled wireNo

Suitable for round conductorsYes

Suitable for fine-stranded conductorsYes

Suitable for high temperatures (up to 650 °C)No

Suitable for solid laddersNo

Suitable for stranded conductorsYes

Sleeve shapeShort

IsolationWithout

According to DINYes

Nominal cross section95 mm²

SurfaceTinned

MaterialCopper
