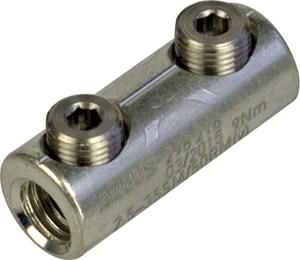

Intercable 182470 ICSV306-1 with partition 35-185RM/SE/SM screw connector

In stock
SKU: 665428
€23.95
Into a basketIn the basketGo

Overview

Suitable screw connectors for a wide range of applications such as street lighting or when using copper shield wires and plastic-insulated conductors. The grooved profile breaks through the oxide layer of the conductor when screwing and ensures perfect contact at all times.

PropertyValue
Surface:tinned
Oil stop/centre bar:yes
Number of screws:2
Nominal cross-section aluminum, SM:35 to 185 mm²
Nominal cross-section aluminum, RM:35 to 185 mm²
Nominal cross-section aluminum, SE:35 to 185 mm²
Nominal cross-section copper, RE:35 to 185 mm²
Nominal cross-section aluminum, RE:35 to 185 mm²
Nominal cross-section copper, SM:35 to 185 mm²
Conductor material:Aluminum
Nominal cross-section copper, RM:35 to 185 mm²
With insulation:no
With solder hole:no
Protection class (IP):IP00

Characteristics

Oil stop/central barYes
Nominal cross-section aluminum, SE35 to 185 mm²
HABICSV306-1 with partition 35-185RM/SE/SM
Minimal order4 pieces
ManufacturerIntercable
HAN182470
GTIN8014212320995
SurfaceTinned
IP protection)IP00
