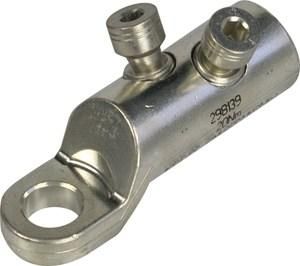

Intercable 182478 ICSK102-3 35RE/SM-150RM/120SM (r) M12 Al-screw cable lug

In stock
SKU: 665436
€35.17
Into a basketIn the basketGo

Overview

Suitable screw cable lugs for a wide range of applications such as street lighting or when using copper shield wires and plastic-insulated conductors. The grooved profile breaks through the oxide layer of the conductor when screwed in and ensures perfect contact at all times.

PropertyValue
Connection thread size (metric):12
Surface:tinned
Nominal cross-section aluminum, RM:35 to 150 mm²
Nominal cross-section aluminum, SE:50 to 120 mm²
Nominal cross-section aluminum, SM:35 to 120 mm²
Nominal cross-section aluminum, RE:35 to 150 mm²
Nominal cross-section copper, RE:35 to 150 mm²
Nominal cross-section copper, SM:35 to 120 mm²
Conductor material:Aluminium
Nominal cross-section copper, RM:35 to 150 mm²
With shear head:yes
Min. AWG size:2
Max. AWG size:4/0

Characteristics

Nominal cross-section aluminum, SE50 to 120 mm²
HABICSK102-3 35RE/SM-150RM/120SM (r) M12
Minimal order4 pieces
ManufacturerIntercable
HAN182478
GTIN8014212321077
Connection thread size (metric)12
SurfaceTinned
