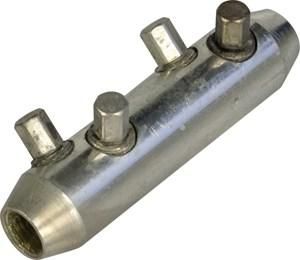

Intercable 182480 ICSV313-5 with partition 25-50SM,-70RM/SE screw connector

In stock
SKU: 665438
€41.56
Into a basketIn the basketGo

Overview

Suitable screw connectors for a wide range of applications such as street lighting or when using copper shield wires and plastic-insulated conductors. The grooved profile breaks through the oxide layer of the conductor when screwing and ensures perfect contact at all times.

PropertyValue
Surface:tinned
Oil stop/centre bar:yes
Voltage range:up to 30 kV
Number of screws:4
Nominal cross-section aluminum, SM:25 to 50 mm²
Nominal cross-section aluminum, RM:25 to 70 mm²
Nominal cross-section aluminum, SE:25 to 70 mm²
Nominal cross-section copper, RE:25 to 95 mm²
Nominal cross-section aluminum, RE:25 to 95 mm²
Nominal cross-section copper, SM:25 to 50 mm²
Conductor material:Aluminum
Nominal cross-section copper, RM:25 to 70 mm²
With insulation:no
With solder hole:no
Protection class (IP):IP00

Characteristics

Oil stop/central barYes
Voltage seriesUp to 30 kV
Nominal cross-section aluminum, SE25 to 70 mm²
HABICSV313-5 with partition 25-50SM,-70RM/SE
Minimal order4 pieces
ManufacturerIntercable
HAN182480
GTIN8014212321091
SurfaceTinned
IP protection)IP00
