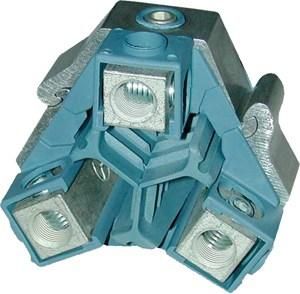

Intercable 182486 ICKR401-3 3 conductor cable branch clamp ring

In stock
SKU: 665444
€69.43
Into a basketIn the basketGo

Overview

The multiple branch terminal or cable branch clamping ring (short: clamping ring) enables the all-phase branching of a cable under voltage in the smallest of spaces, which is particularly important from the point of view of reducing time and costs.

PropertyValue
Surface:bare
Nominal cross-section main conductor, SM:70 to 150 mm²
Nominal cross-section main conductor, SE:70 to 150 mm²
Nominal cross-section branch conductor, SM/RM:6 to 70 mm²
Nominal cross-section branch conductor, SE/RE:6 to 95 mm²
Terminal insulated:no
Connection type:screw connection
Clamping channel opening Branch conductor:open on one side
Clamping channel opening Main conductor:open on both sides
Branch conductor material:aluminium/copper
Main conductor material:aluminium/copper

Characteristics

HABICKR401-3 3 conductors
ManufacturerIntercable
HAN182486
GTIN8014212321152
SurfaceBlank
Connection typeScrew connection
Intercable 182486 ICKR401-3 3 conductor cable branch clamp ring
Intercable 182486 ICKR401-3 3 conductor cable branch clamp ring
