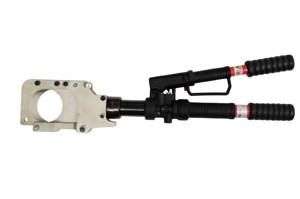

Intercable 712304 HSI85 hydraulic up to max. 85mm cable cutter

In stock
SKU: 666589
€2,494.58
Into a basketIn the basketGo

Overview

suitable for cutting aluminum cables and copper cables without steel reinforcement up to a maximum diameter of 85mm, light and compact design, cutting head with snap closure and knife guide rotatable 270 degrees, fast feed through double piston hydraulics, one-hand operation in fast feed possible through inner handle, integrated pressure limitation, cutting area diameter 85mm, cutting force 70kN, operating pressure 700bar

PropertyValue
Total length:692 mm
With impact protection:no
Handle design:1-component
Suitable for fine-stranded conductors:no
Suitable for solid conductors:yes
Suitable for multi-stranded conductors:yes
With stripping function:yes
Cutting jaws replaceable:yes
Suitable for max. cable diameter:85 mm
Suitable for steel wire braiding:no
Cutting head replaceable:no
Design/operation:hand-hydraulic
Protective insulated 1000 V:no
Insulated:no
VDE tested:no

Characteristics

VDE testedNo
Version/operationHand-hydraulic
HABHSI85 hydraulic up to max. 85mm
ManufacturerIntercable
HAN712304
GTIN8014212138682
Suitable for fine-stranded conductorsNo
Suitable for solid laddersYes
Suitable for stranded conductorsYes
Overall length692 mm
Handle design1-component
IsolatedNo
Protectively insulated 1000 VNo
Intercable 712304 HSI85 hydraulic up to max. 85mm cable cutter
Intercable 712304 HSI85 hydraulic up to max. 85mm cable cutter
