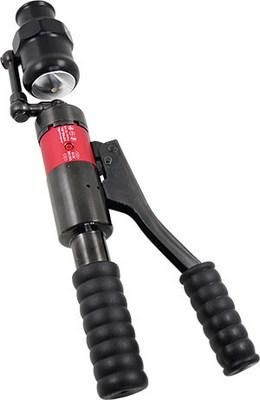

suitable for punching round, square and rectangular holes up to max. 3 mm material thickness, light, compact and robust design, head can be swivelled/rotated by 360 degrees, hydraulic head made of high-strength aluminium material, fast feed through double piston hydraulics, automatic pressure limitation, manual return by turning the handle in any position possible, operating temperature range -10 degrees C to + 40 degrees C, punching force 60 kN, operating pressure 700 bar, punching performance (max. sheet thickness) up to diameter 63.5 mm: 3.0 mm steel material and 2.5 mm stainless steel material, up to 68.0 x 68.0 mm: 3.0 mm steel material / 1.5 mm stainless steel material, up to 92.0 x 92.0 mm: 2.5 mm steel material / 1.5 mm stainless steel material, larger than 92.0 x 92.0 mm to 138.0 x 138.0 mm 2 mm St-material, set contents: Hydraulic cordless sheet metal punch, LI-Ion battery 18V/3Ah (RA11), charger for LI-Ion batteries 18V/230V (LG8), hydraulic screw 9.5x19.0mm, hydraulic screw 19.0x125.0mm, spacer bush, tube of anti-wear paste, HSS-E step drill, USB cable, CD-ROM, carrying case for holding the tool, spare battery, charger and 8 pairs of round hole inserts
| Property | Value |
| Type of operation: | hand-hydraulic |
| Punching force: | 60 kN |
