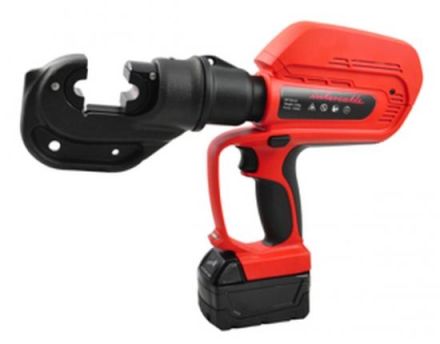

Intercable 715912 AP130-C2 130kN in set bag battery press

In stock
SKU: 769785
€3,798.94
Into a basketIn the basketGo

Overview

suitable for pressing aluminum cables and copper cables up to 400 sqmm, 3-year guarantee (20,000 cycles), light, compact and robust design, housing made of glass fiber reinforced, impact-resistant plastic, foldable pressing head can be rotated up to 360°, double piston technology enables fast feed and cycle time, ergonomic, well-balanced 2-component handle enables fatigue-free work with one-hand operation, 2-stage speed advantageous when positioning the device on the cable lug/connector, opening of the device in any position using a left-right push button, LED for illuminating the work area, powerful battery, approx. 120 pressings for Cu 150 sqmm, charging time: 50 min., max. stroke 42mm, head opening 42mm, pressing force 130 kN, operating pressure 700 bar (70MPa), Set contents: Hydraulic battery press, LI-Ion battery 18V/3Ah (RA11), shoulder strap (TG2), charger for LI-Ion batteries 18V/230V (LG8), carrying bag

PropertyValue
Suitable for:Cable lugs and connectors
Length:417 mm
Cross-section:10 to 400 mm²
Press form:universal (interchangeable inserts)
Design/operation:battery-hydraulic
With automatic return:no
With locking device (for mechanical tools):no
Inserts interchangeable:yes
Pressing force:130 kN

Characteristics

Version/operationBattery-hydraulic
HABAP130-C2 130kN in set bag
ManufacturerIntercable
HAN715912
GTIN8014212511874
Suitable forCable lugs and connectors
Length417 mm
Press moldUniversal (interchangeable inserts)
Cross-section10 to 400 mm²
