Reisser 000812W038-05503502-16 FPS facade panel screws TX RN 812, ETA, 5.5 x 35, stainless steel A4, pickled, passivated, pack of 100, RAL 7037, dust grey, head painted

In stock
SKU: 955072
€52.28
Into a basketIn the basketGo

Overview

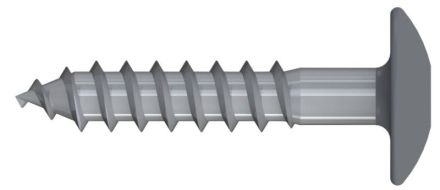

FPS facade panel screw, round head, 5.5 x 35, partial thread, TX 20, stainless steel A4, bright, 100 pcs.

Area of application:
Fastening of facade cladding on wooden substructures.

Area of application:
Facade cladding

Advantages / Claim:
The facade panel screw - variety of colors for the perfect match

PropertyValue
Product category:Roof & Facade
Article number:000812W038-05503502-16
GTIN:4005674541329
Product name:FPS facade panel screw
Diameter:5.5 mm
Length:35 mm
Dimension:5.5 x 35
Packaging quantity:100
Packaging unit:pcs.
Material:Stainless steel A4
Surface:bright
Head shape:Flat-round head
Drive type:TX
Drive size:20
Thread type:Wood thread
Full/partial thread:Partial thread
Head diameter:12 mm
Core diameter d1:3.5 mm
Thread length L1:24 mm
Paint color:RAL 7037
Color name:Dust gray
Approval:ETA-11/0106
Thread pitch:2.4 mm
Tensile load capacity:5.9 kN
Yield moment:4.4 Nm
Breakage torque:6.0 Nm

Characteristics

Color of paintworkRAL 7037
ManufacturerReisser
HAN000812W038-05503502-16
GTIN4005674541329
Dimension5.5x35
Drive typeTX
Drive size20
Item number000812W038-05503502-16
Fracture torque6.0Nm
Diameter5.5 mm
Yield moment4.4Nm
Thread typeWood thread
Thread length L124 mm
Thread2.4 mm
Core diameter d13.5 mm
Head diameter12 mm
Head shapeFlat round head
Length35 mm
MaterialStainless steel A4
SurfaceBlank
Product categoryRoof & Facade
Product nameFPS facade panel screw
Packaging UnitPcs.
Packaging quantity100
Full/partial threadPartial thread
Tensile strength5.9kN
PermitETA-11/0106
