Reisser 000812W038-05504502-24 FPS facade panel screw TX RN 812, ETA, 5.5 X 45, stainless steel A4, pickled, passivated, packed in 100 pieces, RAL 9001, cream white, head painted

In stock
SKU: 955084
€50.92
Into a basketIn the basketGo

Overview

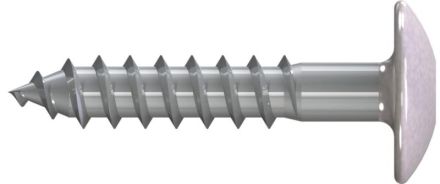

FPS facade panel screw, round head, 5.5 x 45, partial thread, TX 20, stainless steel A4, bright, 100 pcs.

Area of application:
Fastening of facade cladding on wooden substructures.

Area of application:
Facade cladding

Advantages / Claim:
The facade panel screw - variety of colors for the perfect match

PropertyValue
Product category:Roof & Facade
Article number:000812W038-05504502-24
GTIN:4005674545006
Product name:FPS facade panel screw
Diameter:5.5 mm
Length:45 mm
Dimension:5.5 x 45
Packaging quantity:100
Packaging unit:pcs.
Material:Stainless steel A4
Surface:bright
Head shape:Flat head
Drive type:TX
Drive size:20
Thread type:Wood thread
Full/partial thread:Partial thread
Head diameter:12 mm
Core diameter d1:3.5 mm
Thread length L1:30 mm
Paint color:RAL 9001
Color name:Cream white
Approval:ETA-11/0106
Thread pitch:2.4 mm
Tensile strength:5.9 kN
Yield moment:4.4 Nm
Break torque:6.0 Nm

Characteristics

Color of paintworkRAL 9001
ManufacturerReisser
HAN000812W038-05504502-24
GTIN4005674545006
Dimension5.5x45
Drive typeTX
Drive size20
Item number000812W038-05504502-24
Fracture torque6.0Nm
Diameter5.5 mm
Yield moment4.4Nm
Thread typeWood thread
Thread length L130 mm
Thread2.4 mm
Core diameter d13.5 mm
Head diameter12 mm
Head shapeFlat round head
Length45 mm
MaterialStainless steel A4
SurfaceBlank
Product categoryRoof & Facade
Product nameFPS facade panel screw
Packaging UnitPcs.
Packaging quantity100
Full/partial threadPartial thread
Tensile strength5.9kN
PermitETA-11/0106
