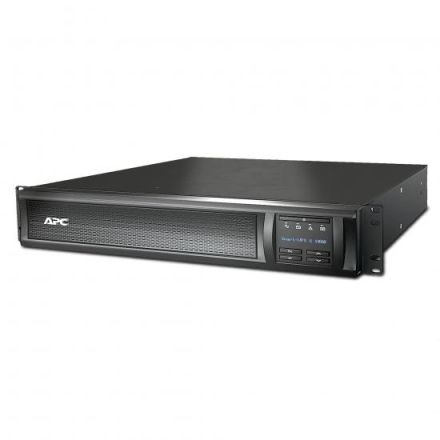

APC SMX1000I Smart-UPS X 1000VA Rack LCD

In stock

SKU: 663559

Price on request

€1,207.52

€0

Overview

Intuitive LCD user interface
Easy-to-read interface with precise information in multiple languages and support for on-site UPS configuration with user-friendly navigation buttons.

High frequency design
Reduces or eliminates the need for bulky transformers, making the equipment lighter and easier to handle.

Automatic detection of external batteries
UPS system detects the connection of external battery modules and automatically updates the runtime.

Battery replacement date display
Dynamic display of the recommended battery replacement date in month and year facilitates long-term maintenance planning.

Green operating mode
Patent-pending operating mode in which unused electrical components are switched off when power supply conditions are good, allowing very high operating efficiency to be achieved without compromising safety.

Energy consumption meter
Usage indication in kilowatt hours for energy conscious users.

Pure sinusoidal output signal when running on battery power
Simulates mains power for the highest possible compatibility with servers and sensitive electronic systems with active power factor correction.

Feature	Value
UPS topology:	Line-Interactive
Output capacity:	1000 VA
Output power:	800 W
Waveform:	Sine
Input operating voltage (min) :	151 V
Input operating voltage (max) :	302 V
Input frequency:	50/60 Hz
Output frequency regulation:	50/60 Hz
Automatic Voltage regulation:	Yes
Overvoltage assessment:	600 J
Efficiency:	98.2%
Emergency power off (EPO) :	Yes
Noise level:	40 dB
Pressure rise protection:	Yes
Acoustic signals:	Yes
Acoustic alarm modes:	Low battery warning, Overload Alarm
Auto Restart:	Yes
AC Plug Types:	C13 Coupler
Plug:	C14 Coupler
Number of AC Ports:	8 AC Outlets
Number of Output IEC Jumpers:	2
USB Port:	Yes
SmartSlot:	Yes
Battery Technology:	Sealed Lead Acid (VRLA)
Battery Capacity:	299 VAh
Typical Backup Time at Full Load:	8.1 min
Typical backup time at half load:	24.2 min
Battery life (max.) :	5 year(s)
Battery recharge time:	3 h
Hot-swap battery:	No
Automatic battery test:	Yes
Cold start:	Yes
Form factor:	Rackmount/Tower
Product color:	Black
Rack capacity:	2U
Cable length:	1.83 m
LED indicators:	Yes
RoHS compliant:	Yes
Certification:	CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Operating temperature range:	0 - 40 °C
Storage temperature range:	-15 - 45 °C
Operating humidity:	0 - 95%
Storage humidity:	0 - 95%
Operating altitude:	0 - 3000 m
Storage height:	0 - 15000 m
Width:	432 mm
Depth:	490 mm
Height:	89 mm
Weight:	22.9 kg
Rack mounting kit:	Yes
Cables included:	RS-232, USB cable
Quick installation guide:	Yes
Software CD:	Yes
Packaging width:	589 mm
Packaging depth:	620 mm
Packaging height:	246 mm
Package weight:	27.3 kg
Quantity per pallet:	8 piece(s)
Nominal output voltage:	230 V
Nominal input voltage:	230 V
