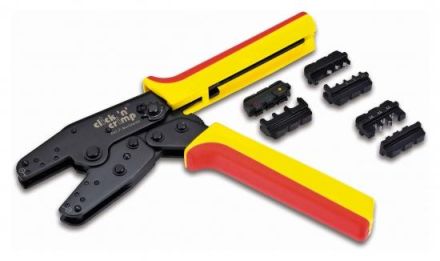

Cimco 106052 Click`n`Crimp Solar Crimping Pliers

In stock
SKU: 654193
€232.36
Into a basketIn the basketGo

Overview

Pressing pliers with interchangeable press profile inserts, which are fixed in the pliers body by a locking bracket, allowing profiles to be changed in seconds without the need for additional tools. Two additional press profiles that are not currently in use are stored in the two integrated magazine holders on the pliers legs so that they cannot be lost. Pliers body made of strong, specially tempered, hardened sheet steel, with leverage for low manual effort, adjustable ratchet mechanism with forced release for standard-compliant pressing pressure, ergonomic 2-component handle covers, fully equipped with hardened, precise press profile inserts. Weight including 3 press profile inserts only 690 g. with press profile inserts no. 10 6010 106027 and 106028

PropertyValue
Suitable for:various applications
Length:350 mm
Cross-section:0.5 to 10 mm²
Press form:universal (interchangeable inserts)
Design/operation:mechanical
With automatic return:no
With locking device (for mechanical tools):yes
Number of inserts supplied:3
Inserts interchangeable:yes

Characteristics

Version/operationMechanically
HAB106052 Click`n`Crimp Solar
ManufacturerCimco
HAN106052
GTIN4021103060520
Suitable forVarious applications
Length350 mm
Press moldUniversal (interchangeable inserts)
Cross-section0.5 to 10 mm²
