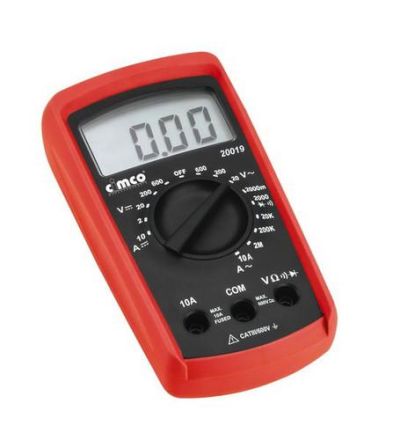

Cimco 111409 Standard Digital Multimeter

In stock

SKU: 830306

Price on request

€42.14

€0

Overview

Multimeter, AC/DC voltage measurement up to 600V, AC/DC current measurement up to 10A, resistance measurement up to 2 MOhm. Overvoltage category CAT III 600 V, CAT IV 300 V. Continuity test, diode test. Large LCD display. Protection class IP40, tested according to EN61010-1, EN61010-2-033, EN61010-031. Batteries included.

Property	Value
Max. voltage measuring range AC:	600 V
Measuring range selection:	manual
Display:	digital
With level measurement (dB):	no
Analog bar display:	no
Multiple display:	yes
Max. voltage measuring range DC:	600 V
Max. current measuring range AC:	10 A
Max. current measuring range DC:	10 A
Max. Resistance measuring range:	2 MOhm
Lowest resistance resolution:	0.01 Ohm
Continuity test/diode test:	yes
Relative value measurement:	no
Inductance measurement:	no
Conductance measurement:	no
Instantaneous value memory (data hold):	no
Maximum value memory:	no
Minimum value memory:	no
Peak value memory:	no
True RMS measurement:	no
Duty cycle measurements:	no
Measured value memory:	no
Interface:	no
Measuring circuit category:	CAT III
Analog bar display analog/logarithmic:	no
Bluetooth interface:	no
Speed measurement:	no
Continuity test:	yes
Explosion-tested version:	no
IR interface:	no
Cable length measurement:	no
Power and energy measurement:	no
Line symmetry test for two-wire connections abE:	no
Max. Voltage measuring circuit category:	600 V
Milliohm measurement with 4-wire technology (Kelvin connection):	no
Nominal test voltage 10 V:	yes
Nominal test voltage 100 V:	yes
Nominal test voltage 1000 V:	no
Nominal test voltage 250 V:	yes
Nominal test voltage 50 V:	yes
Nominal test voltage 500 V:	yes
Harmonics analysis/Power Quality:	no
Circuit breaker:	no
Temperature measurement RTD:	no
Temperature measurement TC:	no
