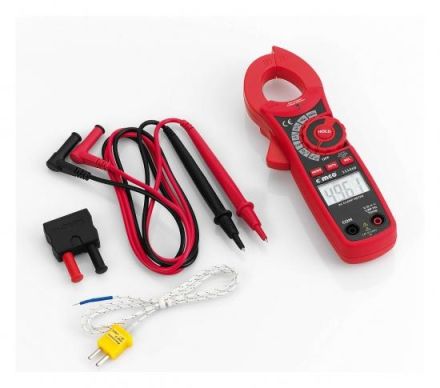

Cimco 111410 AC mini current clamp

In stock
SKU: 655687
€76.39
Into a basketIn the basketGo

Overview

AC mini current clamp, CAT III, 600 V, AC current measurement (AVG) up to 400 A, non-contact voltage tester. Description. This series of current clamps combines robustness and functionality with a great price/performance ratio. The ergonomic housing allows one-handed operation and is very robust thanks to the molded-on soft rubber protection. Depending on the application, you can choose from four different models in two housing sizes. From the simple AC clamp with average measurement (AVG) to the AC/DC clamp with true RMS measurement. Depending on the model, a fast bar graph display and a max-hold function for determining motor starting currents are integrated. All devices have voltage, frequency, temperature, capacitance and resistance measurement functions with automatic range selection as well as diode test and acoustic continuity tester. In addition, all devices are equipped with a non-contact voltage test (NCV). Robust and handy. The 2-component housing with integrated soft rubber protection means that the measuring device can also withstand tough applications. The rubberized housing shell also makes the measuring device very easy to grip. With the stand on the back, you can place the measuring device in an easy-to-read position and have both hands free for measuring. Measure currents during operation. The current clamp enables contactless current measurement without the measuring circuit having to be interrupted and separated as with the conventional measuring method. Downtime of systems or machines is thus effectively avoided. Temperature and component measurements. The current clamp is a full-fledged multimeter with many measuring functions. Both hobby and professional users get their money's worth here. Comfortable and safe. The automatic measuring range selection enables comfortable measurements and always displays the measured values with the optimal resolution. With the extended voltage measuring range of up to 600 V, you can also carry out professional tasks reliably and safely. This even makes measurements on 3-phase power networks possible. Reliable measurement results with factory calibration. As part of quality assurance, all Cimco measuring devices are calibrated to factory standards during production. This ensures high quality and compliance with the tolerance limits as specified in the technical data in the operating instructions. A validation certificate is not created in this case. Features: Data hold, auto power off function, voltage, frequency, temperature, capacitance and resistance measurement functions. Diode test and acoustic continuity tester. Non-contact voltage test (NCV). Scope of delivery: Bag, safety measuring leads, thermal sensor, K-type measuring adapter, operating instructions.

PropertyValue
Power measurement:no
Current measuring range/AC:1 to 400 A
Clamp opening:30 mm
True RMS measurement (TRMS):no
Leakage current measurement:no
Harmonics measurement:no
Measurement in cable with forward and return conductors:no
Version as adapter for connecting to multimeter:no
Interface:no
Voltage measurement/AC:yes
Voltage measurement/DC:yes
Resistance measuring range:yes
Display:digital
Analog bar display:no
Measuring range selection:manual
Measuring circuit category:CAT III
Continuity test:yes

Characteristics

HAB111410 AC
ManufacturerCimco
HAN111410
GTIN4021103114100
