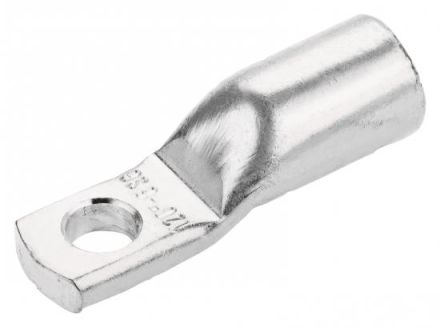

Cimco 183842 RKS 240-M12 for switchgear tubular cable lug

In stock
SKU: 655751
€5.77
Into a basketIn the basketGo

Overview

Tubular cable lugs 240 mm² - M12 for switchgear connections, SG series. Version with narrow flange, without inspection hole, material: Cu-ETP according to DIN EN 13 600, soft, F20, so that it can still be easily pressed manually even with large cross-sections. Surface: galvanically tinned

PropertyValue
Nominal cross section:240 mm²
Connection thread size (metric):12
With inspection hole:no
Flange shape:ring shape
Conductor class:various
Insulated:no
Connection angle:180° (horizontal)
Surface:tinned
Narrow flange design:yes
Material:Copper
Number of mounting holes:1

Characteristics

HABRKS 240-M12 for switching devices
ManufacturerCimco
HAN183842
GTIN4021103838426
Connection thread size (metric)12
Connection angle180° (horizontal)
Number of mounting holes1
Flange shapeRing shape
IsolatedNo
Leader ClassDifferent
With viewing holeNo
Nominal cross section240 mm²
SurfaceTinned
Narrow flange designYes
MaterialCopper
