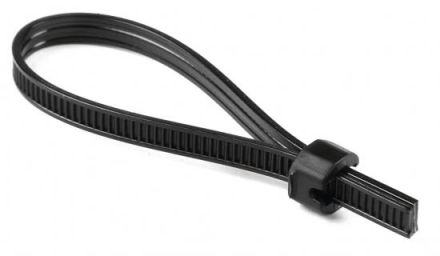

HellermannTyton 102-66210 ATS 3080 5000 ST/Reel PA6.6 Black Locking Head

In stock
SKU: 715509
€0.07
Into a basketIn the basketGo

Overview

Innovative two-part consumables: sealing head and band. Externally toothed sealing band protects the bundled goods. Available on rolls with 500 m of sealing band and 5,000 sealing heads. The externally toothed sealing band is perfect for sensitive surfaces and can be used for binding cables, pipes and hoses as well as for closing bags. The material is particularly suitable for large numbers of binding processes in cable assembly, the automotive industry, industrial plants and packaging sensors.

PropertyValue
Band width:8.0 mm
Band length:9.0 mm
Max. bundle diameter:100 mm
Colour:black
Material:plastic
Removable closure:no
Labeling area:none
UV-stable according to ASTM D6779:yes
Min. Holding force:225 N
Material quality:Polyamide (PA)
Surface:untreated
Transparent:no
Reflective (luminous color):no
Operating temperature:-40 to 105 °C
Flammability class of the insulating material according to UL 94:V2

Characteristics

HABATS 3080 5000 ST/Spool PA6.6 Black
Minimal order5000 Pieces
ManufacturerHellermannTyton
HAN102-66210
GTIN4031026216911
Band length9.0 mm
Labeling areaWithout
Operating temperatur-40 to 105 °C
Width of the band8.0 mm
Flammability class of the insulating material according to UL 94V2
ColorBlack
Removable closureNo
Max. bundle diameter100 mm
Min. holding force225N
SurfaceUntreated
Reflective (luminous color)No
TransparentNo
UV-stable according to ASTM D6779Yes
MaterialPlastic
Material qualityPolyamide (PA)
