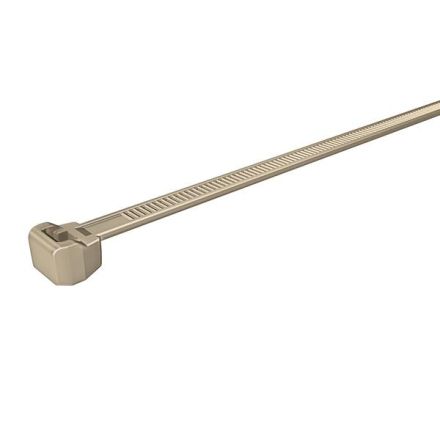

HellermannTyton 111-01235 PT220-PEEK 220x4,7 internally serrated beige cable ties

In stock
SKU: 630271
€16.66
Into a basketIn the basketGo

Overview

For high temperature applications from -55 °C to +240 °C. Internally toothed cable ties for a secure hold on the bundle. Closed fit on the cable bundle thanks to a recess in the head. Particularly easy to loop in with excellent holding power. Small space requirement thanks to the rounded head design. Combines the performance characteristics of a metal cable tie with the simple installation of a polyamide cable tie. Easy to process by hand or with tools (process-reliable). PEEK cable ties were developed for use in extreme environments. The high-performance material PEEK means that the cable ties can be used in environments with operating temperatures of up to +240 °C. PEEK cable ties can replace various metal solutions thanks to their high temperature resistance and help to save weight in the aviation or automotive industries. PEEK cable ties have also been used for some time in rail vehicle construction and the chemical industry. The very good chemical and radiation resistance extends the area of application of PEEK to include medical technology.

PropertyValue
Band width:4.7 mm
Band length:220.0 mm
Max. Bundle diameter:56.0 mm
Halogen-free:yes
Band closure:Plastic tongue/nose
UL approval:no
Color:beige
Material:Plastic
Band thickness:1.3 mm
Removable closure:no
Labeling area:without
Design:internally toothed
VG approval:no
MIL approval:no
Min. holding force:380.0 N
Material quality:other
Surface:untreated
Transparent:no
Reflective (luminous color):no
Operating temperature:-55 to 240 °C
Flammability class of the insulating material according to UL 94:V0

Characteristics

HABPT220-PEEK 220x4,7 internally toothed beige
ManufacturerHellermannTyton
HAN111-01235
GTIN4944387960549
VersionInternally toothed
Strip thickness1.3 mm
Band length220.0 mm
Band closurePlastic tongue/nose
Labeling areaWithout
Operating temperatur-55 to 240 °C
Width of the band4.7 mm
Flammability class of the insulating material according to UL 94V0
ColorBeige
Halogen freeYes
Removable closureNo
MIL approvalNo
Max. bundle diameter56.0 mm
Min. holding force380.0N
SurfaceUntreated
Reflective (luminous color)No
TransparentNo
UL approvalNo
VG approvalNo
MaterialPlastic
Material qualityOther
