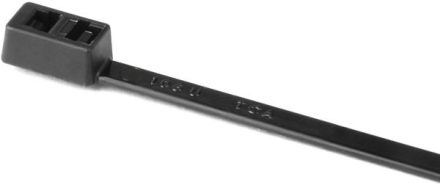

HellermannTyton 117-05000 T50RDH-PA66-BK-C1 210x4.6 cable ties

In stock
SKU: 631478
€0.44
Into a basketIn the basketGo

Overview

Parallel guidance of two bundles with just one cable tie. Cable tie with double locking head. Bundling with an internal and an external toothed loop. Different materials are available. Bundles can be of different diameters. Maximum bundle diameter is to be understood as the maximum combined bundle diameter. Easy processing by hand is possible. Cable tie tools are available for increased process reliability. Double locking heads are ideal for parallel guidance of two cable bundles. There is no need for a second, additional cable tie. From the automotive industry to construction vehicles to white goods, the DH series can be found in a wide variety of applications. It is also a practical helper in the packaging industry. The first loop closes and secures a bag, while the second loop is converted into a carrying handle.

PropertyValue
Band width:4.7 mm
Band length:210.0 mm
Max. Bundle diameter:38.0 mm
Halogen-free:yes
Band closure:Plastic tongue/nose
UL approval:yes
Color:black
Material:Plastic
Band thickness:1.4 mm
Removable closure:no
Labeling area:without
Design:internally toothed
UV-stable according to ASTM D6779:no
VG approval:no
Min. holding force:225 N
Material quality:Polyamide (PA)
Surface:untreated
Transparent:no
Reflective (luminous color):no
Operating temperature:-40 to 85 °C
Flammability class of the insulating material according to UL 94:V2

Characteristics

HABT50RDH-PA66-BK-C1 210x4.6
ManufacturerHellermannTyton
HAN117-05000
GTIN5022660324345
VersionInternally toothed
Strip thickness1.4 mm
Band length210.0 mm
Band closurePlastic tongue/nose
Labeling areaWithout
Operating temperatur-40 to 85 °C
Width of the band4.7 mm
Flammability class of the insulating material according to UL 94V2
ColorBlack
Halogen freeYes
Removable closureNo
Max. bundle diameter38.0 mm
Min. holding force225N
SurfaceUntreated
Reflective (luminous color)No
TransparentNo
UL approvalYes
UV-stable according to ASTM D6779No
VG approvalNo
MaterialPlastic
Material qualityPolyamide (PA)
