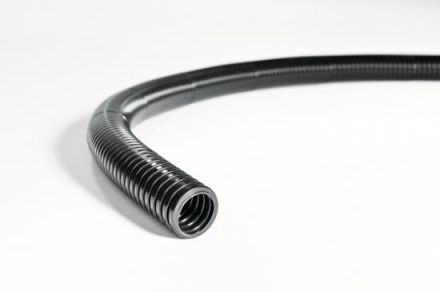

HellermannTyton 166-11109 HG-SW67-PA6-BK-10M HelaGuard plastic conduit

In stock
SKU: 630537
€36.86
Into a basketIn the basketGo

Overview

Very flexibleLong service lifeGood abrasion resistanceHighly impact resistant and dimensionally stableVery good resistance to solvents and oilsLow smoke density and toxicitySelf-extinguishing according to UL94 V2Halogen, sulfur and phosphorus freeColors: Black Gray (RAL 7031) on requestThe flexible standard corrugated pipe for industrial applications in mechanical engineering, plant construction, in control cabinets and public buildings.

PropertyValue
Lengthwise slotted:no
Nominal size in inches:other
Lockable (two-part):no
Approval according to DIN EN 61386-23:yes
Approval according to NF F 16-101:no
Nominal diameter:67 mm
Inner diameter:56.3 mm
Outer diameter:67.2 mm
Operating temperature:-40 to 120 °C
Fire protection according to UL94:V2
Bending radius, static:130 mm
Oil resistant:yes
Colour:black
Sheathing material:without sheathing
Flame-propagating:no
Halogen-free:yes
Approval according to UR:yes
Approval according to CSA:yes
Approval according to LUL/British Standard:no
Lloyds Register TA approval:yes
UTAC approval:no
Protection class (IP):IP66
Bending behavior:flexible
Bending radius, dynamic:130 mm

Characteristics

Inner diameter56.3 mm
Bending radius, static130 mm
Bending behaviorFlexibel
Flame propagatingNo
HABHG-SW67-PA6-BK-10M HelaGuard
Minimal order10 meters
ManufacturerHellermannTyton
HAN166-11109
GTIN4031026302324
Outer diameter67.2 mm
Operating temperature-40 to 120 °C
ColorBlack
Halogen freeYes
Nominal diameter67 mm
Nominal size in inchesOther
IP protection)IP66
