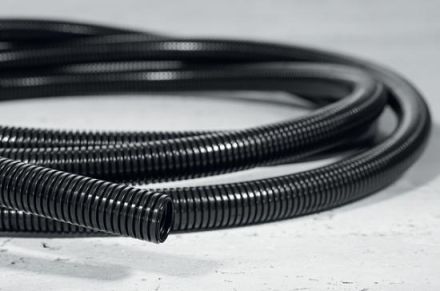

HellermannTyton 166-11208 HG-LW54-PA6-BK-25M HelaGuard plastic hose

In stock
SKU: 630551
€12.01
Into a basketIn the basketGo

Overview

Low weightVery flexibleLong service lifeHighly impact-resistant and dimensionally stableVery good resistance to solvents and oilsHalogen, sulfur and phosphorus freeColors: Black Gray (RAL 7031) on requestThe lightweight, flexible corrugated pipe is suitable for applications with low mechanical stress in machine and plant engineering, in control cabinets and buildings.

PropertyValue
Lengthwise slotted:no
Nominal size in inches:other
Lockable (two-part):no
Approval according to DIN EN 61386-23:no
Approval according to NF F 16-101:no
Nominal diameter:54 mm
Inner diameter:47.4 mm
Outer diameter:54.5 mm
Operating temperature:-40 to 120 °C
Fire protection according to UL94:other
Bending radius, static:80 mm
Oil resistant:yes
Colour:black
Sheathing material:without sheathing
Flame-spreading:no
Halogen-free:yes
Approval according to UR:yes
Approval according to CSA:no
Approval according to LUL/British Standard:no
Lloyds Register TA approval:no
UTAC approval:no
Protection class (IP):IP66
Bending behavior:flexible
Bending radius, dynamic:80 mm

Characteristics

Inner diameter47.4 mm
Bending radius, static80 mm
Bending behaviorFlexibel
Flame propagatingNo
HABHG-LW54-PA6-BK-25M HelaGuard
Minimal order25 meters
ManufacturerHellermannTyton
HAN166-11208
GTIN4031026302478
Outer diameter54.5 mm
Operating temperature-40 to 120 °C
ColorBlack
Halogen freeYes
Nominal diameter54 mm
Nominal size in inchesOther
IP protection)IP66
