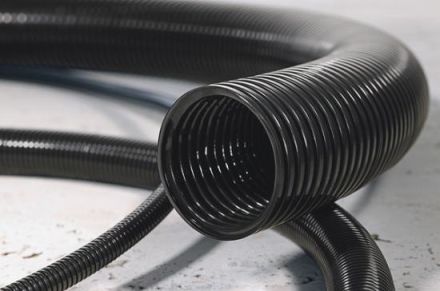

HellermannTyton 166-11405 HG-FR34-PA6-BK-50M HelaGuard plastic conduit

In stock
SKU: 630566
€13.23
Into a basketIn the basketGo

Overview

Very flame retardant (UL94 V0) Low smoke density and toxicityVery flexibleLong service lifeAbrasion-resistantHighly impact-resistant and dimensionally stableVery resistant to solvents and oilsHalogen, sulfur and phosphorus-freeColor: BlackThe flexible, PA6 flame-retardant corrugated pipe is used when there are high fire protection requirements. HG-FR is particularly suitable for use in rail transport and in public buildings.

PropertyValue
Lengthwise slotted:no
Nominal size in inches:other
Lockable (two-part):no
Approval according to DIN EN 61386-23:yes
Approval according to NF F 16-101:no
Nominal diameter:34 mm
Inner diameter:28.1 mm
Outer diameter:34.5 mm
Operating temperature:-40 to 120 °C
Fire protection according to UL94:V0
Bending radius, static:60 mm
Oil resistant:yes
Colour:black
Sheathing material:without sheathing
Flame-spreading:no
Halogen-free:yes
Approval according to UR:yes
Approval according to CSA:no
Approval according to LUL/British Standard:no
Lloyds Register TA approval:yes
UTAC approval:no
Protection class (IP):IP66
Bending behavior:flexible
Bending radius, dynamic:60 mm

Characteristics

Inner diameter28.1 mm
Bending radius, static60 mm
Bending behaviorFlexibel
Flame propagatingNo
HABHG-FR34-PA6-BK-50M HelaGuard
Minimal order50 meters
ManufacturerHellermannTyton
HAN166-11405
GTIN4031026302614
Outer diameter34.5 mm
Operating temperature-40 to 120 °C
ColorBlack
Halogen freeYes
Nominal diameter34 mm
Nominal size in inchesOther
IP protection)IP66
