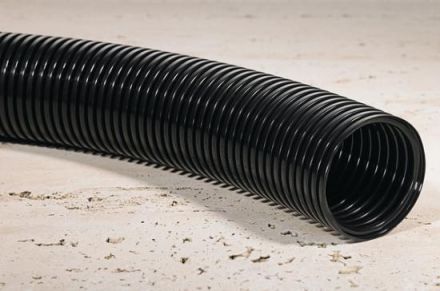

HellermannTyton 166-11507 HG-HI54-PA12-BK-25M HelaGuard plastic conduit

In stock
SKU: 630575
€37.93
Into a basketIn the basketGo

Overview

Very good fatigue resistanceVery flexibleGood mechanical propertiesDimensional stabilityVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeSelf-extinguishing according to IEC 61386Colour: BlackThis corrugated protection hose for dynamic applications is used in robots, railways and in mechanical and plant engineering. Its flexibility means it can withstand environments with constant movement.

PropertyValue
Lengthwise slotted:no
Nominal size in inches:other
Lockable (two-part):no
Approval according to DIN EN 61386-23:yes
Approval according to NF F 16-101:no
Nominal diameter:54 mm
Inner diameter:47.2 mm
Outer diameter:54.5 mm
Operating temperature:-50 to 110 °C
Fire protection according to UL94:other
Bending radius, static:70 mm
Oil resistant:yes
Colour:black
Sheathing material:without sheathing
Flame-propagating:no
Halogen-free:yes
Approval according to UR:yes
Approval according to CSA:yes
Approval according to LUL/British Standard:no
Lloyds Register TA approval:no
UTAC approval:no
Protection class (IP):IP66
Bending behavior:flexible
Bending radius, dynamic:70 mm

Characteristics

Inner diameter47.2 mm
Bending radius, static70 mm
Bending behaviorFlexibel
Flame propagatingNo
HABHG-HI54-PA12-BK-25M HelaGuard
Minimal order25 meters
ManufacturerHellermannTyton
HAN166-11507
GTIN4031026302706
Outer diameter54.5 mm
Operating temperature-50 to 110 °C
ColorBlack
Halogen freeYes
Nominal diameter54 mm
Nominal size in inchesOther
IP protection)IP66
