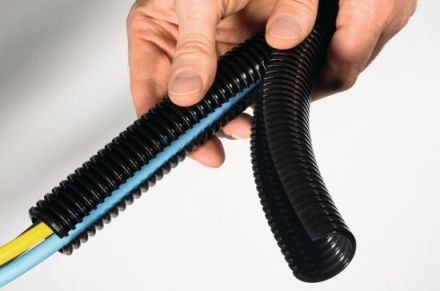

HellermannTyton 166-11803 HG-DC21-PA6-BK-50M HelaGuard plastic conduit

In stock
SKU: 630579
€12.01
Into a basketIn the basketGo

Overview

Can be reopenedThe cables are pulled in from the sideHigh abrasion resistanceHalogen, sulphur and phosphorus freeSelf-extinguishing according to IEC 61386Colour: BlackThis double-slit protective hose is used in control cabinets as well as in mechanical and plant engineering where subsequent installation is required.

PropertyValue
Lengthwise slotted:yes
Nominal size in inches:other
Lockable (two-part):yes
Nominal diameter:21 mm
Inner diameter:13.7 mm
Outer diameter:21.0 mm
Operating temperature:-40 to 120 °C
Fire protection according to UL 94:other
Bending radius, static:90 mm
Oil resistant:yes
Color:black
Sheathing material:without sheathing
Flame-spreading:no
Halogen-free:yes
Protection class (IP):IP40
Bending behavior:flexible
Bending radius, dynamic:90 mm

Characteristics

Inner diameter13.7 mm
Bending radius, static90 mm
Bending behaviorFlexibel
Flame propagatingNo
HABHG-DC21-PA6-BK-50M HelaGuard
Minimal order50 meters
ManufacturerHellermannTyton
HAN166-11803
GTIN4031026310800
Outer diameter21.0 mm
Operating temperature-40 to 120 °C
ColorBlack
Halogen freeYes
Nominal diameter21 mm
Nominal size in inchesOther
IP protection)IP40
HellermannTyton 166-11803 HG-DC21-PA6-BK-50M HelaGuard plastic conduit
HellermannTyton 166-11803 HG-DC21-PA6-BK-50M HelaGuard plastic conduit
€12.01
Into a basketIn the basketGo
