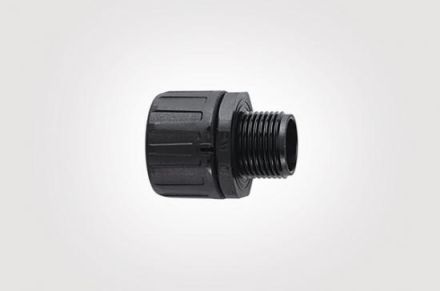

HellermannTyton 166-21017 HG42-S-PG36-PA66-BK- HelaGuard plastic cable gland

In stock
SKU: 630615
€11.70
Into a basketIn the basketGo

Overview

One-piece quick screw connectionHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeMetric thread including lock nutStraight screw connection with external thread.

PropertyValue
Thread size:PG36
Nominal size in inches:other
Perm. in combination with protective hose according to DIN EN 61386-23:no
Design:straight
Rotatable thread:no
Construction:external thread
Connection type:snap connection
Thread type:other
Thread material:polyamide (PA)
Thread length:12 mm
Length:56 mm
min. Inner Ø of hose:40 mm
max. outer Ø of hose:63 mm
Colour:black
Approved in combination with protective hose CSA:yes
Approved in combination with protective hose UR:yes
Approved in combination with protective hose Lloyds Register:no
Nominal diameter:42 mm
Protection class (IP):IP66
Material:Polyamide (PA)
Operating temperature:-50 to 135 °C

Characteristics

Approved in combination with protective hose URYes
Approved in combination with protective hose CSAYes
HABHG42-S-PG36-PA66-BK- HelaGuard
Minimal order2 pieces
ManufacturerHellermannTyton
HAN166-21017
GTIN4031026302997
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-50 to 135 °C
ColorBlack
Thread typeOther
Length56 mm
Nominal diameter42 mm
Nominal size in inchesOther
IP protection)IP66
Connection typeSnap connection
MaterialPolyamide (PA)
