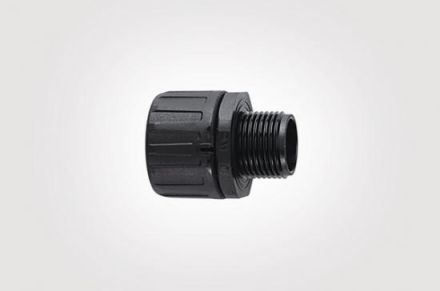

HellermannTyton 166-21018 HG54-S-PG48-PA66-BK- HelaGuard plastic cable gland

In stock

SKU: 630616

Price on request

€20.99

€0

Overview

One-piece quick screw connectionHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeMetric thread including lock nutStraight screw connection with external thread.

Property	Value
Thread size:	PG48
Nominal size in inches:	other
Perm. in combination with protective hose according to DIN EN 61386-23:	no
Design:	straight
Rotatable thread:	no
Construction:	external thread
Connection type:	snap connection
Thread type:	other
Thread material:	polyamide (PA)
Thread length:	12 mm
Length:	61 mm
min. Inner Ø of hose:	52 mm
max. outer Ø of hose:	76 mm
Colour:	black
Approved in combination with protective hose CSA:	yes
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose Lloyds Register:	no
Nominal diameter:	54 mm
Protection class (IP):	IP66
Material:	Polyamide (PA)
Operating temperature:	-50 to 135 °C
