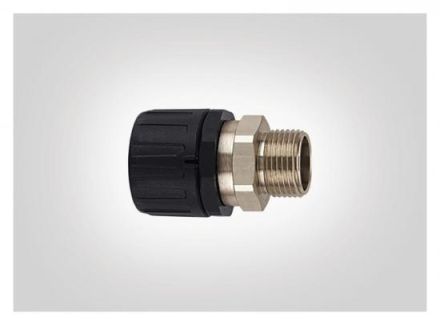

HellermannTyton 166-21301 HG16-SM-M16-PA66/NPB HelaGuard plastic screw connection

In stock

SKU: 630646

Price on request

€16.16

€0

Overview

One-piece quick screw connectionHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeStraight screw connection with rotating brass external thread.

Property	Value
Thread size:	M16 x 1.5
Nominal size in inches:	other
Perm. in combination with protective hose according to DIN EN 61386-23:	no
Design:	straight
Rotatable thread:	yes
Design:	external thread
Connection type:	snap connection
Thread type:	metric
Thread material:	brass
Thread length:	12 mm
Length:	57 mm
min. Inner Ø of hose:	11 mm
max. outer Ø of hose:	29 mm
Colour:	black
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose Lloyds Register:	no
Nominal diameter:	16 mm
Protection class (IP):	IP66
Material:	other
Operating temperature:	-50 to 135 °C
