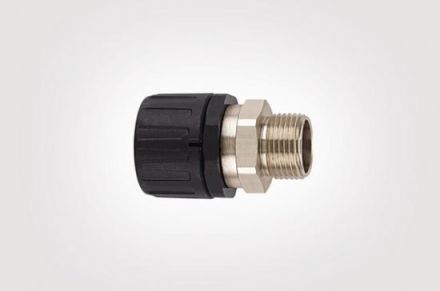

HellermannTyton 166-21303 HG21-SM-M20-PA66/NPB HelaGuard plastic cable gland

In stock
SKU: 630648
€18.80
Into a basketIn the basketGo

Overview

One-piece quick screw connectionHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeStraight screw connection with rotating brass external thread.

PropertyValue
Thread size:M20 x 1.5
Nominal size in inches:other
Perm. in combination with protective hose according to DIN EN 61386-23:no
Design:straight
Rotatable thread:yes
Design:external thread
Connection type:snap connection
Thread type:metric
Thread material:brass
Thread length:12 mm
Length:57 mm
min. Inner Ø of hose:14.5 mm
max. outer Ø of hose:32 mm
Colour:black
Approved in combination with protective hose CSA:no
Approved in combination with protective hose UR:yes
Approved in combination with protective hose Lloyds Register:no
Nominal diameter:21 mm
Protection class (IP):IP66
Material:other
Operating temperature:-50 to 135 °C

Characteristics

Approved in combination with protective hose URYes
Approved in combination with protective hose CSANo
HABHG21-SM-M20-PA66/NPB HelaGuard
Minimal order10 pieces
ManufacturerHellermannTyton
HAN166-21303
GTIN4031026303109
VersionStraight
DesignExternal thread
Rotating threadYes
Operating temperature-50 to 135 °C
ColorBlack
Thread typeMetric
Length57 mm
Nominal diameter21 mm
Nominal size in inchesOther
IP protection)IP66
Connection typeSnap connection
MaterialOther
