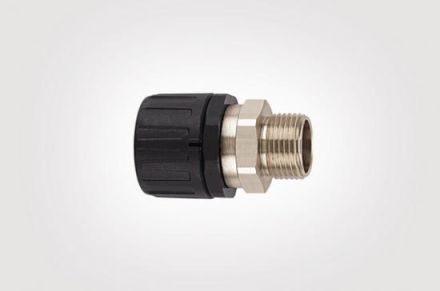

HellermannTyton 166-21306 HG42-SM-M40-PA66/NPB HelaGuard plastic screw connection

In stock

SKU: 630651

Price on request

€24.54

€0

Overview

One-piece quick screw connectionHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeStraight screw connection with rotating brass external thread.

Property	Value
Thread size:	M40 x 1.5
Nominal size in inches:	other
Perm. in combination with protective hose according to DIN EN 61386-23:	no
Design:	straight
Rotatable thread:	yes
Design:	external thread
Connection type:	snap connection
Thread type:	metric
Thread material:	brass
Thread length:	15 mm
Length:	79 mm
min. Inner Ø of hose:	32.5 mm
max. outer Ø of hose:	63 mm
Colour:	black
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose Lloyds Register:	no
Nominal diameter:	42 mm
Protection class (IP):	IP66
Material:	other
Operating temperature:	-50 to 135 °C
