HellermannTyton 166-21405 HG34-SF-M32-PA66/NPB HelaGuard plastic screw connection

In stock

SKU: 630665

Price on request

€29.27

€0

Overview

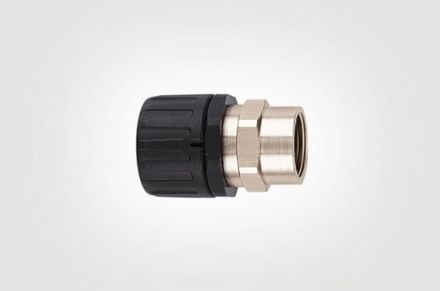

One-piece quick screw connectionHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeStraight screw connection with rotating brass internal thread.

Property	Value
Thread size:	M32 x 1.5
Nominal size in inches:	other
Perm. in combination with protective hose according to DIN EN 61386-23:	no
Design:	straight
Rotatable thread:	yes
Design:	internal thread
Connection type:	snap connection
Thread type:	metric
Thread material:	brass
Thread length:	14 mm
Length:	82 mm
min. Inner Ø hose:	26.5 mm
max outer Ø hose:	51 mm
Color:	black
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose Lloyds Register:	no
Nominal diameter:	34 mm
Protection class (IP):	IP66
Operating temperature:	-50 to 135 °C
