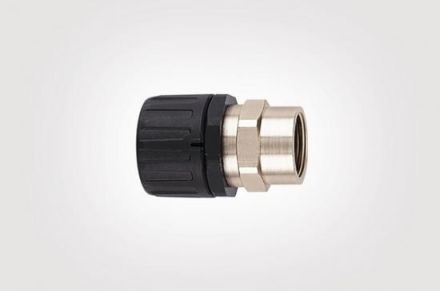

HellermannTyton 166-21409 HG16-SF-PG11-PA66/NP HelaGuard plastic cable gland

In stock
SKU: 630669
€20.40
Into a basketIn the basketGo

Overview

One-piece quick screw connectionHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeStraight screw connection with rotating brass internal thread.

PropertyValue
Thread size:PG11
Nominal size in inches:other
Perm. in combination with protective hose according to DIN EN 61386-23:no
Design:straight
Rotatable thread:yes
Design:internal thread
Connection type:snap connection
Thread type:other
Thread material:brass
Thread length:14 mm
Length:70 mm
min. Inner Ø hose:11 mm
max outer Ø hose:29 mm
Color:black
Approved in combination with protective hose CSA:no
Approved in combination with protective hose UR:yes
Approved in combination with protective hose Lloyds Register:no
Nominal diameter:16 mm
Protection class (IP):IP66
Operating temperature:-50 to 135 °C

Characteristics

Approved in combination with protective hose URYes
Approved in combination with protective hose CSANo
HABHG16-SF-PG11-PA66/NP HelaGuard
Minimal order10 pieces
ManufacturerHellermannTyton
HAN166-21409
GTIN4031026303321
VersionStraight
DesignInner thread
Rotating threadYes
Operating temperature-50 to 135 °C
ColorBlack
Thread typeOther
Length70 mm
Nominal diameter16 mm
Nominal size in inchesOther
IP protection)IP66
Connection typeSnap connection
HellermannTyton 166-21409 HG16-SF-PG11-PA66/NP HelaGuard plastic cable gland
HellermannTyton 166-21409 HG16-SF-PG11-PA66/NP HelaGuard plastic cable gland
