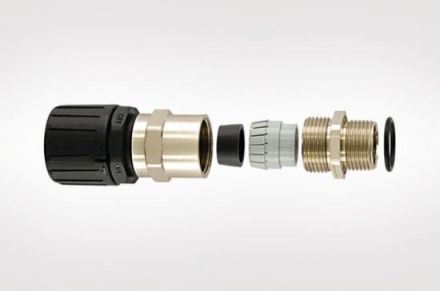

HellermannTyton 166-21504 HG28-SCG-M25 HelaGuard plastic screw connection

In stock

SKU: 630678

Price on request

€28.21

€0

Overview

Strain reliefCable sealing at IP68 and IP69kHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeStraight screw connection with strain relief and cable sealing.

Property	Value
Thread size:	M25 x 1.5
Nominal size in inches:	other
Perm. in combination with protective hose according to DIN EN 61386-23:	no
Design:	straight
Rotatable thread:	yes
Design:	external thread
Connection type:	snap connection
Thread type:	metric
Thread material:	brass
Thread length:	12 mm
Length:	90 mm
Height:	44 mm
max. external Ø Hose:	44 mm
Color:	black
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose UR:	yes
Approved in combination with protective hose Lloyds Register:	no
Nominal diameter:	28 mm
Protection class (IP):	IP66
Material:	other
Operating temperature:	-50 to 135 °C
