HellermannTyton 166-30109 SC75-GS-ML-10M HelaGuard metal conduit

In stock
SKU: 630715
€67.30
Into a basketIn the basketGo

Overview

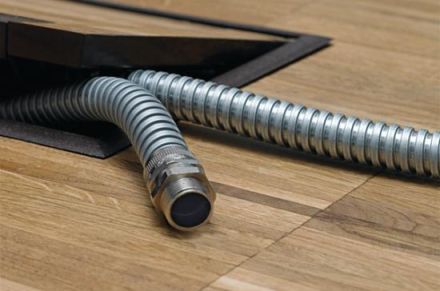

High pressure, impact and tensile strength. Highly flexible. Flexible steel protective hose, versatile for use in underground wiring in offices and data centers as well as for protecting hydraulic or pneumatic hoses. Anywhere where high mechanical protection is required.

PropertyValue
Nominal diameter:75 mm
Surface:galvanized
Coating material 1st layer:without coating
Coating material 2nd layer (outer):without coating
Nominal size in inches:other
Inner diameter:70.0 mm
Outer diameter:77.0 mm
Seal:without seal
Operating temperature:-100 to 300 °C
Bending radius, static:150 mm
Weight:1.14 kg/m
Electrical properties:not clarified
Flame propagating:no
Use in Ex areas:no
Material:steel
Protection class (IP):IP40
Bending behavior:flexible

Characteristics

Inner diameter70.0 mm
Use in Ex areaNo
Bending radius, static150 mm
Bending behaviorFlexibel
Flame propagatingNo
HABSC75-GS-ML-10M HelaGuard
Minimal order10 meters
ManufacturerHellermannTyton
HAN166-30109
GTIN4031026305943
Outer diameter77.0 mm
Operating temperature-100 to 300 °C
Weight1.14 kg/m
Nominal diameter75 mm
Nominal size in inchesOther
SurfaceGalvanized
IP protection)IP40
MaterialSteel
