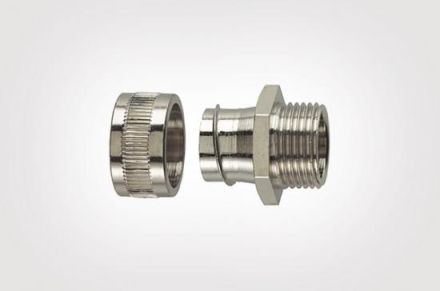

HellermannTyton 166-30307 SC40-FM-M40-NPB-ML-2 HelaGuard metal cable gland

HellermannTyton 166-30307 SC40-FM-M40-NPB-ML-2 HelaGuard metal cable gland

In stock

SKU: 630826

Price on request

€41

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection with external thread. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rigid external thread, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	40 mm
Smallest inner diameter of hose:	34.2 mm
Thread connection size:	M40 x 1.5
Total length:	39.0 mm
Thread length:	14.0 mm
Rotatable thread:	no
Nominal size in inches:	other
Design:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-100 to 300 °C
Thread number:	1
Thread type:	metric
Type of screw connection to the housing:	thread

Characteristics

One-pieceNo

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose34.2 mm

Protection class (IP) depends on hose40

Thread Number of turns1

HABSC40-FM-M40-NPB-ML-2 HelaGuard

Minimal order2 pieces

Manufacturer

HAN166-30307

GTIN4031026306100

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-100 to 300 °C

Overall length39.0 mm

Thread connection sizeM40x1.5

Thread typeMetric

Thread length14.0 mm

Nominal diameter40 mm

Nominal size in inchesOther

SurfaceNickel-plated

Housing materialBrass
