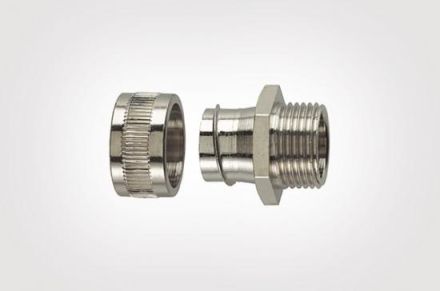

HellermannTyton 166-30316 SC25-FM-PG21-NPB-ML HelaGuard metal cable gland

HellermannTyton 166-30316 SC25-FM-PG21-NPB-ML HelaGuard metal cable gland

In stock

SKU: 630833

Price on request

€11.96

€0

Into a basketIn the basketGo

Overview

Multi-part screw connection with external thread. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rigid external thread, nickel-plated brass.

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	25 mm
Smallest inner diameter of hose:	19.1 mm
Thread connection size:	PG21
Total length:	32.5 mm
Thread length:	12.0 mm
Rotatable thread:	no
Nominal size in inches:	other
Design:	straight
Design:	external thread
One-piece:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-100 to 300 °C
Thread number:	1
Thread type:	other
Type of connection of the screw connection to the housing:	thread

Characteristics

One-pieceNo

Connection type of screw connection to the housingThread

Smallest inner diameter of the hose19.1 mm

Protection class (IP) depends on hose40

Thread Number of turns1

HABSC25-FM-PG21-NPB-ML HelaGuard

Minimal order10 pieces

Manufacturer

HAN166-30316

GTIN4031026306193

VersionStraight

DesignExternal thread

Rotating threadNo

Operating temperature-100 to 300 °C

Overall length32.5 mm

Thread connection sizePG21

Thread typeOther

Thread length12.0 mm

Nominal diameter25 mm

Nominal size in inchesOther

SurfaceNickel-plated

Housing materialBrass
