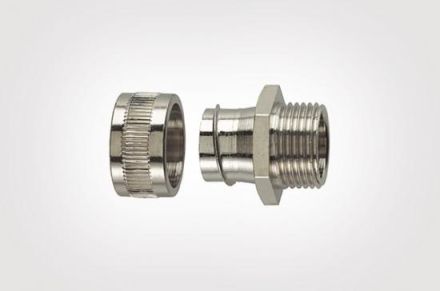

HellermannTyton 166-30319 SC50-FM-PG42-NPB-ML- HelaGuard metal cable gland

In stock
SKU: 630836
€46.94
Into a basketIn the basketGo

Overview

Multi-part screw connection with external thread. Provides tightness and secure hold of the hose. Can be fastened with a lock nut. Rigid external thread, nickel-plated brass.

PropertyValue
Protection class (IP) depending on hose:40
Nominal diameter:50 mm
Smallest inner diameter of hose:44.8 mm
Thread connection size:other
Total length:42.0 mm
Thread length:15.0 mm
Rotatable thread:no
Nominal size in inches:other
Design:straight
Design:external thread
One-piece:no
Material of the housing:brass
Surface:nickel-plated
Operating temperature:-100 to 300 °C
Thread number:1
Thread type:other
Type of screw connection to the housing:thread

Characteristics

One-pieceNo
Connection type of screw connection to the housingThread
Smallest inner diameter of the hose44.8 mm
Protection class (IP) depends on hose40
Thread Number of turns1
HABSC50-FM-PG42-NPB-ML- HelaGuard
ManufacturerHellermannTyton
HAN166-30319
GTIN4031026306223
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-100 to 300 °C
Overall length42.0 mm
Thread connection sizeOther
Thread typeOther
Thread length15.0 mm
Nominal diameter50 mm
Nominal size in inchesOther
SurfaceNickel-plated
Housing materialBrass
